Zmde Pre- Engineering Building Processing Machine Steel Structure Plate H Beam Plasma Cutting CNC Drilling Machine

Product Description

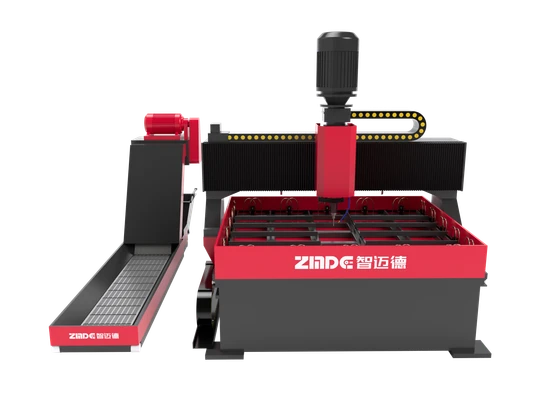

ZMDE Pre- Engineering Building Processing Machine Steel Structure Plate H Beam Plasma Cutting CNC Drilling Machine

>Cost-effective and highly efficient equipment <
1. The equipment is constructed from premium-grade solid materials, ensuring a low failure rate and minimizing maintenance costs. Components such as ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from industry-leading brands.
2. The CRT display enables automatic chip removal, significantly cutting down on manual cleaning time and operational costs.
3. High equipment precision ensures a high qualification rate for workpieces, thus reducing the cost of consumables.
>Simple operation, unrivaled productivity <
1. The intuitive human-machine interface provides clear visibility and automatically generates machining programs, enhancing user efficiency.
2. CNC and PLC control systems offer precise positioning, ensuring consistent and accurate results.
3. Hydraulic clamps secure workpieces firmly, and operators can control the process effortlessly via a foot switch, making operations both convenient and labor-saving.
4. The table is equipped with 12 fast hydraulic clamps, allowing simultaneous clamping of four groups of workpieces, thereby boosting productivity.
5. The ability to clamp small workpieces at the four corners of the working table significantly shortens the production preparation cycle and enhances overall efficiency.
6. Clamping smaller workpieces at the table's corners not only shortens the production preparation period but also dramatically improves production efficiency.
> Guaranteed quality, diverse application scope <
1. Key components like the gantry, column, and table are made from robust materials, with the main machine weighing up to 6300kg, ensuring unparalleled durability.
2. The equipment serves a wide range of industries and is essential for connecting plate processing tasks.
3. It supports a wide range of drilling diameters, from 12mm to 50mm, catering to various project needs.
> Versatile for numerous production scenarios <
1. Ideal for the continuous production of multiple batches of single flat-type workpieces.
2. Capable of producing small batches of multi-species workpieces, it can process plates of different shapes, such as rectangular, round flanges, and polygonal shapes. It can also handle two or four different specifications of plates simultaneously.
3. Capable of stacking and producing multiple layers of thinner sheets, drilling holes up to a maximum of 100mm.
4. Automated processing through upper computer software enables precise start and end points for drilling, allowing for through holes, blind holes, step holes, and chamfering.
> Seamless production process automation <
1. Line board integration offers a high degree of automation, with automatic positioning based on the drilling program.
2. The system adjusts the optimal feeding volume according to different hole diameters, ensuring efficient operation.
3. Capable of automatic and continuous processing of large hole diameters, achieving one-time processing and molding.
4. Features an automatic chip removal function for uninterrupted workflow.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co.,Ltd. is a pioneering high-tech enterprise specializing in the research, development, manufacturing, sales, and service of intelligent equipment for assembly buildings. Recognized as a national leader in specialization and innovation, ZMDE proudly holds the title of a 'small giant' enterprise. Our core industry revolves around the intelligent industrial mother machine for steel structure assembly buildings and the Industrial Internet of Things (IoT).We excel in integrating advanced intelligent control systems across our two primary sectors.
Our headquarters, nestled in the Lingang New Area of Pudong New District, Shanghai, spans an impressive 32,000 square meters. This site is home to the Research Institute of Artificial Intelligence for Assembled Buildings, where we spearhead management, research, and the development of cutting-edge core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in the Weicheng District of Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines for steel beams in assembled buildings. This facility is also at the forefront of producing advanced intelligent industrial mother machines for walls of assembled buildings.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
