Official Manufacturer 1.2 Ton Heavy Hydraulic Crawler Excavator Price

Product Description

Product Uses
The CX-12-6 product is suitable for farming,gardening,orchard ditching fertilization, small earthwork engineering,municipal engineering,road repair,basement and interior construction, concrete crushing,undergroud cables,pipe laying,tap water,river dredging and river garden cultivation engineering and other working environment. With mining,crushing,cleaning,drilling,bulldozing hook functions,fast changing accessories,machine utilization rate is greatly improved,can be applied to various kinds of soil,good use effect,simple operation,compact and flexible,convenient transportatin, can work in small venues.
Main feature

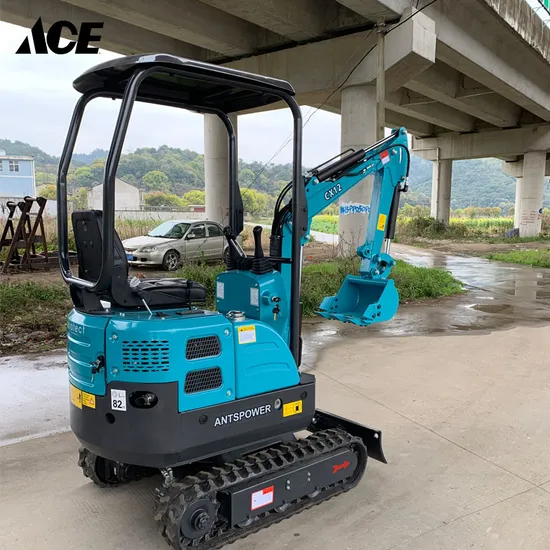

1. Excellent performance: The small excavator CX12-6 is equipped with advanced hydraulic system and power transmission technology, which provides excellent excavation and operation performance, and can quickly complete various tasks.
2. Flexible: This excavator adopts a compact design and has excellent maneuverability. It can easily enter small spaces for operations, and is suitable for urban construction and indoor projects.
3. Multifunctional attachments: CX12-6 supports a variety of attachments, such as buckets, log grabs, breakers, etc., which can be quickly replaced according to different work requirements to achieve a variety of operating functions.
4. Convenient operation: The equipment is equipped with advanced ergonomics, which is easy to operate and comfortable to operate, which reduces the fatigue of operators and improves work efficiency.
5. Energy saving and environmental protection: the small excavator CX12-6 adopts advanced energy-saving technology to reduce fuel consumption and exhaust emissions, which meets environmental protection requirements.
SPECIFICATION

Operation Way	Pilot operation
Travel Motor	LKG Plunger motor
Max, travelling speed (low / high)	2-speed,2/4km/h
Ground contact pressure / Mpa(kgf/cm2)	29.0(0.30)
Ground clearance	140 mm
Engine	Specification
Model	D722-EF11
Type	Water-cooled diesel engine E-TVCS
Engine power	10.2/2200 kW/rpm
Number of cylinder	3
Bore X Stroke	67 X 68 mm
Displacement (CC)	719
Operating weight	1200 kg
Bucket capacity std. SAE/CECE	0.024/0.020 m³
Bucket width(with side teeth/without side teeth)	398/380

Dimensions	Specification	Hydraulic pumps	Specification
Overall length	2980 mm	Boom swing angle (left/ right)	55/55 deg
Overall height	2260 mm	Flow rate	21 I/min
Swivelling speed	8.3 rpm	Hydraulic pressure	17.2(175) Mpa(kgf/cm2)
Rubber shoe width	180 mm	Hydraulic reservoir (I)	12.6
Tumbler distance	1010 mm	Fuel tank capacity (I)	12
Dozer size( width X height)	750/990 X 200 mm

SCOPE OF USE
Excavation engineering: small excavators are mainly used for excavating earthwork, stonework, deep excavation of foundation pits, excavation of channels, excavation of pools, etc.
Earthwork leveling: Small excavators can be used to level the ground, fill potholes, make roads, etc.
Foundation engineering: Small excavators are often used for excavating foundation pits, pouring concrete foundations, laying foundations for anti-corrosion, etc.
Underground water pipes: In urban construction, small excavators can be used for underground water pipes, such as water supply pipes, drainage pipes, gas pipes, etc.
Landscaping: Small excavators are suitable for landscaping projects, such as digging flower beds, planting forests, landscape stones, etc.
Other projects: When building and rebuilding, the excavator can be used for other walls, concrete structures of buildings, etc.
Mining operations: In the field of mining, small excavators can perform some fine operations, such as mining ore, cleaning ore piles, etc.
Farmland engineering: small excavators can be used for farmland irrigation canal excavation, field leveling and other agricultural operations.
Road construction: Mini excavators can be used for road construction, such as digging roadbeds, leveling road surfaces, etc.
River treatment: small excavators can be used to clean up rivers, repair embankments, dig drainage channels, etc.
Environmental engineering: In environmental engineering, small excavators can be used to dispose of garbage, excavate landfills, etc.


1,Exceptional Protective Performance: Wooden crate packaging provides excellent protection, effectively mitigating the impact of shocks, vibrations, moisture, dust, and other external factors during transportation. This ensures that the machine's performance and functionality remain uncompromised.
2,Moisture and Dust Resistance: Wooden crate packaging offers good moisture and dust resistance, preventing water, rain, dust, and other contaminants from entering the packaging and maintaining the excavator's appearance and mechanical components in optimal condition.
3,Ease of Stacking and Handling: Wooden crate packaging is often designed for easy stacking, maximizing storage and transportation space utilization. Additionally, the structure and weight of wooden crates facilitate straightforward loading and unloading processes, reducing handling complexity and risks.
4,Reusable: Wooden crate packaging typically boasts a longer lifespan, allowing for multiple reuse cycles and minimizing environmental resource wastage in alignment with sustainable development principles.
Package and sample

Exhibition

Certifications
Factory

Hot Products

CX10T	CX11A	CX11B
CX12	CX12-3	CX12-5
CX12-6	CX18	CX20

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
