Ball Lollipop Depositing Line/All Lollipop Forming Machine/Ball Lollipop Machine/Factory Price Hard Candy Production Line/Lollipop Candy Making Machine

Product Description

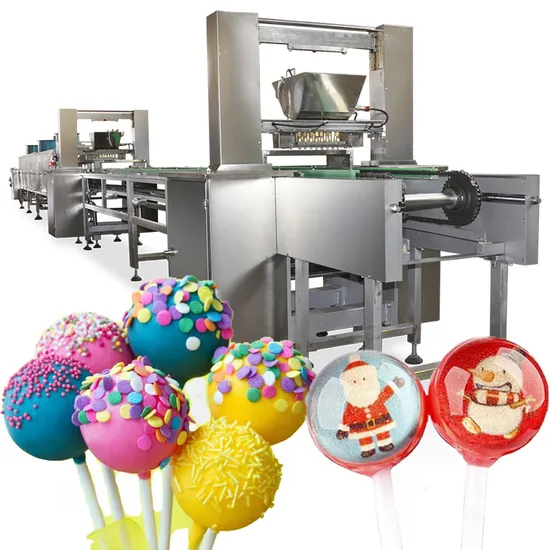

GD150-S/300-S/450-S/1200-S full automatic serve driven PLC controlled hard candy depositing line is the most advanced production line for deposited hard candy manufacturing. The line is consist of auto weighing and mixing system, pressure dissolving system, micro-film cooker, depositor and industrial and industrial cooling tunnel. Itis developed base on SHINWEI's 4th generation hard candy depositing line, adopt the advance serve system to control the processing.

Model	GD150-S	GD300-S	GD450-S	GD600-S	GD1200-S
Output(kg/h)	150	300	450	600	1200
Max candy weight	6g	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa	800kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.3m3/min, 0.4~0.6MPa	0.4m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V	68KW/380V
Total length(m)	15	17	17	20	25
Gross weight	3500 kg	4000 kg	4500 kg	5000 kg	8000kg

The features:
1. All units of the production line are auto running, all raw materials are handling in the piping and machine, and various kind of recipes can be programmed in the PLC and applied easily and freely when needed.
2. PLC and serve driven system are imported brand which is more reliable and better quality.
3. Depositing volume (candy weight)can be changed easily that just need to set the data in the touch screen. More accurate depositing and continuous production makes minimal product wastage.
4. Simple and compact machine structure, menu operation, better efficiently, high speed running reliable and steady; Little noise are available in this machine.
Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement
After-sale service for abroad customers.
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
Why choose us?
· Nearly 20 years experiences in food processing machinery production, established in 1982.
· We are manufacturer and wholesale of dough kneading machine
· We adopt environment-friendly materials and technology
· We mainly sell stock in bulk. OEM orders are welcome
· We can accept the mix order

---
