GYFTY China Single-Mode Outdoor 2-288 Core Fiber Optic Cable

Product Description

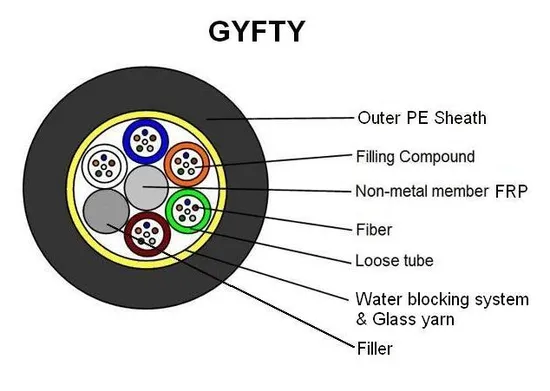

24 Core Factory of Thunder-Proofing Optic Fiber Cable (GYFTY)GYFTY Outdoor Sm 9/125 unarmored Fiber Cable
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
GYFTY optic fiber cable Technology Specification:

GYFTY Fiber Optic Cable Technology Specification:
Cable Count	Out sheath	Weight	Minimum allowable Tensile Strength		minimum allowable Crush Load		Minimum Bending Radius		Storage
	Diameter		(N)		(N/100mm)		(MM)		temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
2-60	9.8	65	1500	600	1000	300	20D	10D	-40+60
62-72	10.5	85	1500	600	1000	300	20D	10D	-40+60
74-96	14.5	145	1500	600	1000	300	20D	10D	-40+60
98-144	18.3	185	1500	600	1000	300	20D	10D	-40+60

GYFTY optic fiber cable Optical Characteristics: :
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive
				dispersion shifted single-mode fiber

GYFTY 2-288 Core Optical Fiber Cable Competitive Advantages:
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service
GYFTY 2-288 Core Optical Fiber Cable Main Export Markets
· Central/South America
· Mid East/Africa
· Eastern Europe
· North America
· Asia
· Western Europe
· Australasia
pruduction environment:
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 10 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 10m can be provided freely, but you need pay freight cost.
Q4: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.
