| US$13,000.00-14,000.00 | 1 set (MOQ) |

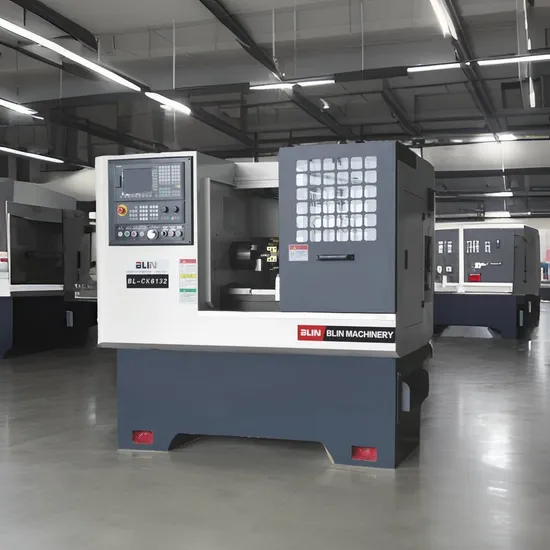

| Item | Specification | Unit | BL-CK6132 |
| Capacity | Guideway width | mm | 350 |
| Max. swing dia. over bed | mm | Φ320 | |
| Max. swing dia. over slide | mm | Φ160 | |
| Spindle | Spindle speed range | rpm | 200~2500 |
| Spindle bore | mm | Φ50 | |
| Spindle nose | / | A2-5 | |
| Spindle motor power | kw | 5.5 | |
| Spindle bearings(front+back) | pcs | 3+2 | |
| X.Z Axes | X/Z axes travel | mm | 260/450 |
| X/Z axes feeding speed | m/min | 8/8 | |
| Finish turning accuracy | mm | ±0.01 | |
| X/Z axes repeatability | mm | 0.01 | |
| Slide board size | mm | 185×380 | |
| X axes ball screw dia./pitch | mm | 25/4 | |
| Z axes ball screw dia./pitch | mm | 40/6 | |
| X/Z axes motor | N.m | 4/6 | |
| Tailstock | Tailstock quill dia./travel | mm | Φ58/130 |
| Tailstock quill taper | / | MT4# | |
| Tool turret | Tool turret type | / | Vertical 4T/gang tool/Horizontal 6,8T |
| Tool shanksize | mm | 24×24 | |
| Other | Overall size(L×W×H) | mm | 1810×1160×1600 |
| N.W. | kg | 1600 |
| Item | Brand |
| Bearing | China top-HRB P4 class |
| Ball screw | China top |
| Spindle lipid | US SHELL |
| Contactor | SIEMENS OEM |
| Pnuematic parts | TAIWAN-AIRTAC |
| Electricity parts | China top |
| linkager | JAPAN |
| Hydraulic parts | TAIWAN |
