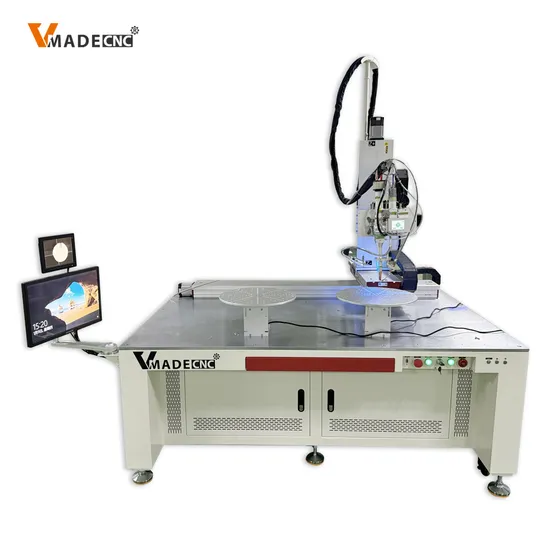

2000W/1500W Automatic Aluminum Copper Stainless Steel with Feeding Wires Laser Welding Machine

Product Description

Product Description
2000W/1500W Automatic Aluminum Copper Stainless Steel with Feeding Wires Laser Welding Machine
Energy concentration: Based on the principle of stimulated radiation of laser, the laser beam is focused on the part to be welded, so that the energy is highly concentrated in a very small area, high temperature is generated instantly, and the material is quickly melted and connected. It can reach a very high temperature in an instant, so that the material is quickly melted to complete the welding process.
Non-contact welding: During the welding process, the laser beam is transmitted through the optical system, without direct contact with the workpiece, avoiding mechanical damage to the workpiece surface, and no need for filler materials such as welding rods and welding wires like traditional welding, reducing the introduction of impurities during the welding process.
Features
*Laser Power -1500W/2000W/3000W
*laser Source : Fiber ,China .
*Wobble Laser Welding Head.
*Servo Motor System
*Working Life 100000 Hours .
*No Consumptive Materials .
*Training : Video and manual in English.
*Weldng Capacity : 0.1-5mm
* 5Axis Autoamtic Control by Software
*4 Axis manaual Control by Joystick
-X=600mm .Y=400mm .Z=400mm . Rotating Axis D125mm
*Laser head +-120 degree rotating .
*Laser Welding Spot : 0.1-5.0mm Adjutable .
*Wire Feeding System With it (OPTIONAL)
*CCD Camera
*Joystick Control X , Y ,Z, Rotating Axis
Detailed Photos
Product Parameters

Model No.	VLW1500W/2000W/3000W
Laser Type	Continuous Fiber Laser
Laser Power	Raycus 1500W/2000W/3000W(Option: JPT/IPG/BWT)
Laser Wavelength	1070nm+/-5nm
Welding Speed	0~120mm/s
Optical Fiber Laser Length	Standard 5m(Option: 10m/15m)
Cooling Method	Industrial Water Cooling
Welding Thickness	0~10mm
Optimal operating environment	Temperature: 15~35ºC Humidity: 20% -80%
Operating Voltage	AC220V/50Hz
Average Consumed Power	2000~4000W
Pulse Width	0.1-50MS
Focal Spot Diameter	0.2-3.0mm
Dimensions	186*145*174cm
Weight	400kg

Samples

Packaging & Shipping
FAQ
1. This laser weld machine also need others?
It only need nitrogen gas as protective gas.and also can use argon.but nitrogen is more cheaper than argon.
2.Does need professional technical to operate this machine?
No. this machine operate is very easy. everyone can operate it . it only need about 10mins can learn it.
3.What is consumables life?
For nozzles and protective lens, both can use about 30 days.
4.It need wire or not ?
We have both model.one is without wire feeder , it use for material section is vertical.such as fiber laser cutting workpiece. The other is with wire feeder.It use for material have a little gap.and it can increase welding strength and penetration.
5.What type of welding wire is needed ?
Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm.
6.If i buy machine without wire feeder, can add wire feeder later?
No. because the laser head and controller are all different.
If you have any questions, Please contact us

---
