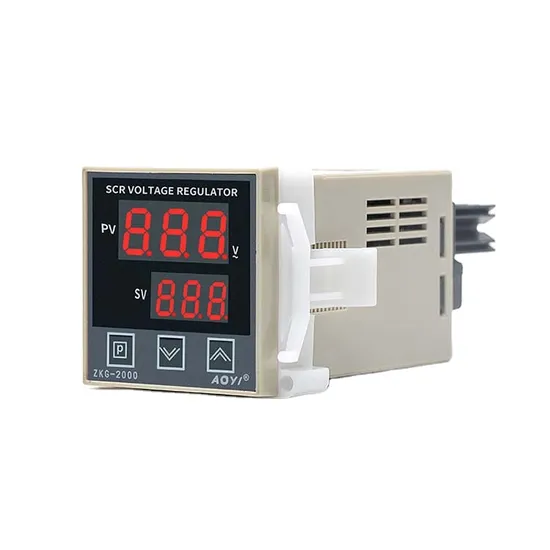

Aoyi The Best Selling Zkg-52 Automatic Digital Display SCR Voltage Regulator AC220V

Product Description

This machine is a digital phase-shifting technology with single-chip microcomputer as the core.The phase-shifting trigger pulse is precisely controlled to continuously change the AC voltage of thyristor output.
1.Adopt negative feedback technology to control voltage changes caused by fluctuations of power grid and load current,so that the load can obtain relatively stable AC voltage.
2.Novel design integrates control and output power,featuring strong earthquake resistance,small size,light weight,high performance cost ratio and so on.
Product Details 1.Maximum phase-shifting trigger conduction angle: no less than 170 .
2.When the power supply 220VAC and thyristor conduction angle are the maximum,the maximum output power is 650w(resistance value of resistive load is 75Ω).
3.Power supply:220VAC ± 10% 50HZ.
4.Operating environment: temperature:-10~50;relative humidity less than 85% of no corrosive gas.
5.External dimension:48*48*110mm,panel mounting hole:45*45mm.
Wiring Diagram 1.Upper terminal of the meter L,N:power input of the meter,L connect with phase line(commonly known as the fire line),N connect with zero line(commonly known as the ground line); OUT:voltage output of the meter,is phase voltage,FP is external full power output terminal.
2.External part: LOAD:user resistance heating equipment,FU:safety device,L is the phase line(commonly known as the fire line),N connect with zero line(commonly known as the ground line).
Single phase wiring diagram:
Note:1.The three terminals "-" "+" "FP" on voltage regulator ZKG-52 are connected to the parent table LTC-482 in parallel.
2.FP access with full power output function,controlled by LTC-482 internal time relay.
3.If FP does not connect,it will not affect the use of other functions.
Three phase wiring diagram:
Installation 1.Connect the power supply,output and load lines according to the wiring diagram.
2.Do not touch the exposed metal parts behind the instrument to prevent electric shock after the instrument is energized.
3.The resistance value of external resistance load is not less than 75Ω.
Function Digital tube of instrument display [PV] 3 bits,indicating AC voltage value of SCR output;[SV] 3 bits represent the set output AC voltage value.There are three working states as follows:
1.Stop working state:no output voltage,[PV] display "OF" and no display in [SV].
2.Stable voltage working state:output the set voltage,[SV] display set voltage,[PV] display output voltage(change with the set voltage).
3.External full power output state:the maximum output voltage(no stable voltage),[SV] maintain the original set value,[PV] display "PH",indicating the current full power output state( "full power" means that the thyristor phase-shifting trigger is at the maximum conduction angle).
Operation 1.Set the stop working state:if it is in the non-stop working state,press "P" key [PV] to display "OF" [SV] without display,indicating that there is no output voltage when it stops working.Press "P" key to enter the stable voltage working state or the external full power working( the external switch is switched on).
2.Set stable voltage working voltage:press "^"(up key) or ""(down key) to change the setting value of [SV] display when the voltage is regulated.If [SV] is changed to 100,then [PV] follows to change to 100,indicating the stable voltage working state,and then output AC voltage is 100V.
Note:the current grid voltage is lower than 220V,if [SV] is set to 220V,then [PV] flicker indicates that the output voltage cannot reach 220V(non-instrument fault).
Why choose us Packing & Delivery Sea shipment Door to door delivery Air transport (1) Factory Introduction (2) Production Process (3) Exhibition (4) Certifications FAQ 1. Q: Can you provide OEM service? A: Yes, we can.
2. Q: What's the MOQ? A: For testing purpose, 1 pc is ok.
3. Q: Can you provide trade assurance service? A: Yes, we are member of the trade assurance scheme.
4. Q: What's the lead time? A: General lead time is 15 days after payment.
5. Q: What's your waranty? A: We provide 6 months warranty against manufacturing defective.

---
