19mm Waterproof 5pin 12V Blue LED Illuminated on off Switch Momentary Push Button

Product Description

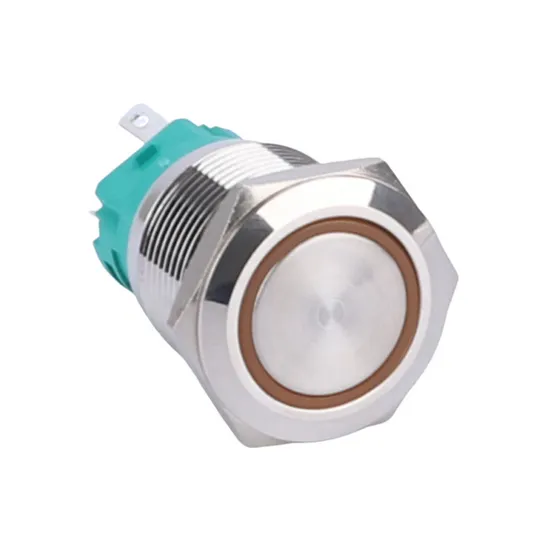

19mm Waterproof 5Pin 12V Blue Led Illuminated ON OFF Switch Momentary Push Button
Product Description:
19mm 12V Car Blue LED Light Angel Eye 5A IP67 Waterproof Metal Push Button Switch Momentary switch: Push & Hold,ON; Release,OFF The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it Great for electromagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls With a wire connector (not included), you don't need to solder the terminals, made installing the switch pain free IP67, IK08 protection can be used in wet or dusty environment Bi-color, Tri-color led is available What You Get
1 * pushbutton switch, with blue 12v ring led illuminated, 5pin terminals
What's the Pushbutton Switch
This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated blue LED ring. It is a SPDT with 19mm threading. These buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V. The higher the voltage value, the brighter the LED. You can add a wire connector, then you don't need to solder the terminals, make installing very easy.
What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed
What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls
What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water
What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you

Product Name	Push Button Switch
Model	IB19E-P11F-E/N
Mounting Hole	19mm
Operation Type	Momentary (Reset)
Switch Combination	1NO1NC
Actuator Shape	Flat Round Head
Terminal type	5 Pin Terminals
Illuminated or not	Yes
Led Voltage	12V (or 3V/5V/24V/110V/220V/others)
Led Color	Blue (Red, Green, Yellow,White,Orange available)
Illuminated Type	Ring Led illuminated
Enclosure Material	Nickel Plated Brass
Delivery Days	1-7 days
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Operating Temperature	-20°C ~+55°C
Customized symbol,colored housing or Connector	Acceptable and with fast shipping
Accessories	Nut, Rubber Waterproof O-ring
Customized Order Confirm	1. What Led Color? 2. What Led Voltage?
What You Get	1X Push button switch: 19mm,12V Blue LED,Momentary,Brass nickel housing

Note: If you need Customized LED, please inform us by mail:
1. What Led Color? 2. What Led Voltage?

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.

---
