Basic Info.
Application
Communication Electronic Products, Industry, Special Equipment, Traffic
Supply Voltage
10-30V DC, 12-240V DC/AC
Control Output
Relay Output
Protection Function
Reverse Polarity
Transport Package
Standard Carton
Specification
50cmx50cmx20cm
Production Capacity
5000 Sets/Month
Packaging & Delivery
Package Size
16.00cm * 11.50cm * 6.00cm
Package Gross Weight
0.500kg
Product Description

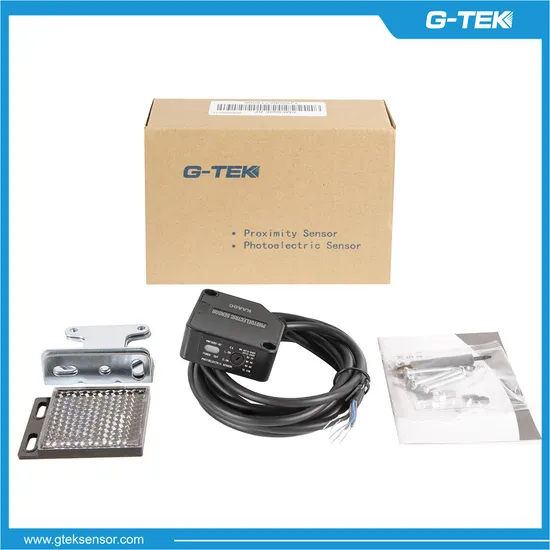

Product Description PMF50R retro-reflective photoelectric sensor is our one popular model used at industry door such as high speed door, roller shutter door, garage door and so on. There are different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of customers.
| Photoelectric sensor | PMF50R-RF-2 |
| Detection Type | Retro-reflective |
| Detection Range | RP02/RP05: 7m; RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 10-30 VDC |
| No-load Current | Max.60mA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 1A resistance load,
120VAC,1A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |
| Photoelectric sensor | PMF50RF-RF-2 |
| Detection Type | Retro-reflective |
| Detection Range | RP02/RP05: 7m; RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 12~240V DC/AC |
| Power consumption | Max.3VA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 3A resistance load,
250VAC,3A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |
Company Profile Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switch,photoelectric sensor,measurement and safety light curtain to Laser rangefinder sensor,laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 at Xiqing district , Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacture base.
| G-TEK Sensor Product List |
| 1 | Photoelectric Sensor | PMF21/PMF50/PMF55/PMF80 /PM18/PS18/PT12 series |
| 2 | Proximity Sensor | IM12/IM18/IM30/IF17 series |
| 3 | Infrared light curtain | LSM/LSMC/LSE/LSEC series |
| 4 | Safety light curtain | LSA series |
| 5 | Infrared vehicle separator | LHA/LHAC/LHN/LHNC series |
| 6 | Loop detector | GVD3/GVD1 series |
| 7 | Laser radar | LSD/LND series |
| 8 | 3D TOF product | GDC1100/GDC1101/GDC1102 |
| 9 | Other sensor product | Microwave radar, Revolving door Anti-pinching sensor |
>>
