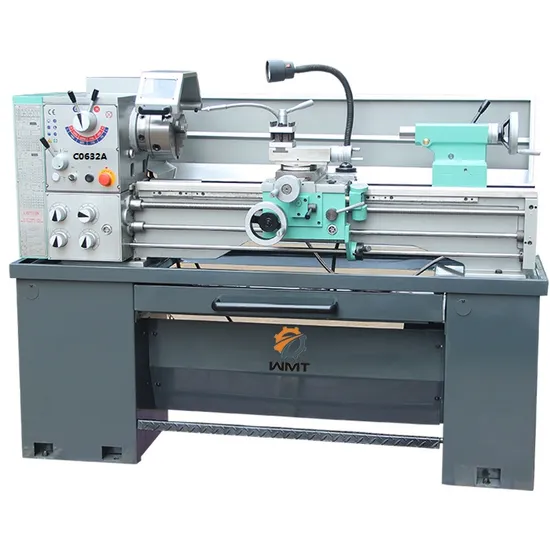

1000mm C0632A Hardened Bench Lathe Machine for Metal Cutting

Product Description

Product Description
Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
Specification

Specifications	C0632A×750/1000mm	C0636A×750/1000mm
	C0632B×750/1000mm	C0636B×750/1000mm
Swing over bed	Φ330mm(13")	Φ360mm(14")
Swing over cross slide	Φ198mm(7-25/32")	Φ212mm(8-1/6")
Swing over gap	Φ476mm(18-3/4")	Φ491mm(9-1/3")
Distance between centers	750mm(30")/1000mm(40")
Bed width	187mm(7-3/8")
Spindle bore and nose	A: Φ38mm(1-1/2") / D1-4 camlock
	B: Φ52mm(2")/D1-5 camlock
Taper in nose	MT5
Speeds number	8 or 16(pole changeable motor:optional)
Speeds range	70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread	8 TPI or 3mm pitch
Cutting tool max section	16×16mm(5/8"×5/8")
Threads imperial pitches	36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches	28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial	36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)
Longitudinal feeds metric	36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev)
Cross feeds imperial	36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)
Cross feeds metric	36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev)
Tailstock barrel taper and travel	MT3 100mm (3-15/16")
Main motor	1.5KW/3 PH or 1 PH
Cross slide travel	160mm(6-5/16")	118mm(4-5/16")
Compoud rest travel	68mm(2-11/16")
Net /Gross weight	570/620kg 620/670kg	610/660kg 650/700kg
Packing size	1890/1940 X 750 X 1510mm

Standard accessories	Optional accessories
3-jaw chuck	Digital Readout(2 Axis, 3 Axis)
4-jaw chuck	Quick change tool post & holders
Coolant system	Taper turning attachment,
Working light	Lathe tools
Foot brake	Face plate
Steady rest	Live center
Follow rest	Leadscrew guard
Chasing dial indicator	Chuck guard
Change gears set	CE standard
Tool box & tools

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
