Hangcha Good Quality Electric Scissor Lift, Aerial Working Equipment

Product Description

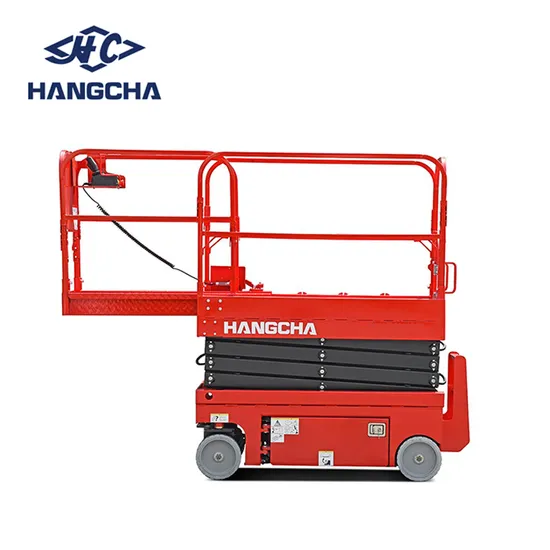

Aerial Work Platform - Mini Self-propelled Scissor Lifts (Electric Motor Drive)

Product Description
Designed to be used in buildings / The working height can perfectly adapt to the needs of building working. Mini Size
/ The compact size makes the machine gets into the elevator with free access.
Light Weight
/ The weight is very light, which can meet the load limit of elevator and better protect the ground.
Large Capacity
/ Though the self-weight is light , it has a large capacity, the machine can allow two peoples working together.
High Rewarding
/ Transport and procurement costs are lower, and rental prices are comparable to regular models.
Green Environment Protection
/ Electric drive walking system, zero emission, low noise, more suitable for indoor use. Detailed Photos
Product Parameters

01	Manufacturer		HANGCHA
02	Model		60XEND	76XEND
03	Working height	(m/in)	5.9/233	7.6/300
04	Platform height	(m/in)	3.9/153	5.6/220
05	Overall length	(m/in)	1.44/57	1.52/60
06	Overall width	(m/in)	0.76/30	0.81/32
07	Overall height	(m/in)	2.08/81.8	2.18/85.8
08	Height with rails folded	(m/in)	1.71/67.3	1.81/71.3
09	Platform size	(m/in)	1.29×0.7/50.8×27.5	1.37×0.7/54×27.5
10	Platform extension size	(m/in)	0.6/23.6	0.6/23.6
11	Ground clearance	(m/in)	0.06/2.4	0.06/2.4
12	Turning radius inside	(m/in)	0.4/15.7	0.45/17.7
13	Turning radius outside	(m/in)	1.55/61	1.6/63
14	Rated load	(kg/lb)	250/551	230/507
15	Load on extension	(kg/lb)	113/250	113/250
16	Batteries	(V,AH)	2,480	2,480
17	Weight ±30	(kg/lb)	900/1984	1270/2910
18	Travel speed km/h	(mph)	0~4(0~2.48)	0~4(0~2.48)
19	Lift time	(s)	32	26
20	Lowered time	(s)	27	21
21	Tyre		Non-mark Tyres	Non-mark Tyres
22	Maximum slope		2°/3°	1.5°/3°
23	Gradeability		30%	30%
24	Working area		"indoor 0km/h(0mph) outdoor 12.5km/h(7.77mph)"	"indoor 0km/h(0mph) outdoor 12.5km/h(7.77mph)"

---
