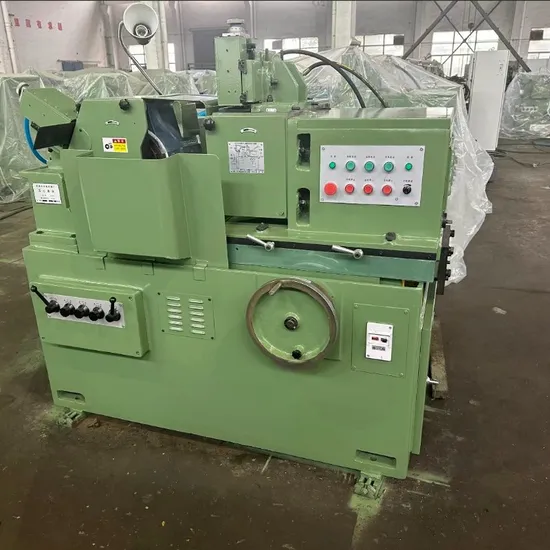

High Precision Centerless Grinding Machine From China for Od: 5-50mm Without CNC

Product Description

Product Description
CNC centerless grinding machine M1050 advantage

High quality cast iron, using low frequency melting furnace to ensure the quality of castings.
After normalization treatment and 1.5 years of natural aging, the internal stress of the bed is eliminated, ensuring the accuracy of the bed and ensuring no deformation.
The guide rail surface undergoes high-frequency quenching, precision grinding, and manual scraping, with high wear resistance and rigidity.
Stable bed structure design, the machine tool has extremely high overall accuracy.

The spindle is made of SNCM-220H high-grade alloy steel imported from Japan, which has been quenched and tempered, deeply cooled, and precision ground to achieve high spindle accuracy and speed.
The spindle seat adopts a high hydrostatic pressure patent, which can form a high-pressure oil film of 20-25KG/cm2, allowing the spindle to suspend in it. During operation, there is no contact or friction with the spindle seat, resulting in high rigidity and no wear, ensuring high-precision machining and ultra long working life.
High hydrostatic pressure spindle provides 3-year maintenance.

The spindle assembled through standard procedures has a rotation accuracy of<1.5 μm. Bringing high-precision grinding performance.
The fastest speed of the grinding wheel is 50m/s (hydrostatic pressure) and 35m/s (dynamic pressure), ensuring the optimal surface smoothness of the workpiece.
Guide wheel continuously variable speed (10-300rpm), suitable for different processing needs.

Product Parameters

Centerless Grinding Machine M1050 main technical parameters
Work Diameter	Φ5-Φ50	mm
Grinding Wheel Size	Φ400*Φ203*150	mm
Guide Wheel Size	Φ300*Φ127*150	mm
Spindle Rotation Accuracy	0.0015	mm
Grinding Wheel Speed	1668	rpm
Guide Wheel Speed	10-200	rpm
Guide Wheel Feed Handwheel	3.5	mm/r
Workbench Feed Handwheel	7	mm/r
Workbench Fine-tuning Handwheel	0.2	mm/r
Power	13.8	kw
Guide Wheel Tilt Angle	-2~+5	°
Guide Wheel Rotation Angle	-1~+3	°
Weight	2880	kg
Size	L19200*W1681*H1479	mm
Roundness	2	um
Cylindricity	3	um
Roughness	Ra0.32	um

Detailed Photos

Work Piece
