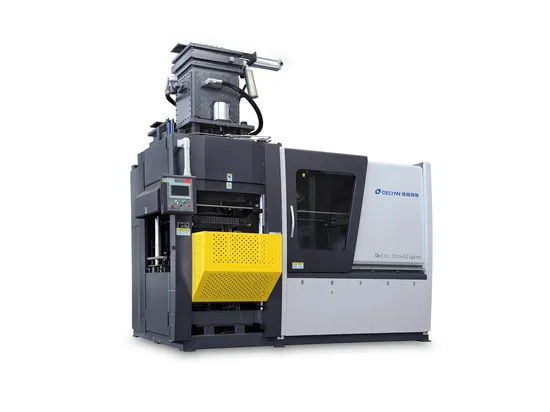

Automatic Delynn Foundry Equipment Green Sand Molding Machine

Product Description

Product Description
Automatic Sand Molding Machine Features
1. The machine is stable, low power consumption, and long lifetime. 2. High level of automation, easy control, and lower labor cost.
3. Highly standardized, good parts interchangeable, fast and low-cost maintenance.
4. The sand could be compacted both inside and outside according to technical requirements, which makes the sand mold better. 5. Mold release agent is sprayed automatically, which makes the demolding smoothly.casting surface glossily, and no defect in the sand mold.
6. Electric cabinet and hydraulic station are all installed in the machine, which makes them compact and easy maintenance.
7. Low failure rate, and the machine can diagnose the failure by its own.

Main Specification Technical Parameter
Contents	DL-ZX6065
Size of sand box	600*650 mm
Thickness of sand box	up 120-200 mm down 120-200 mm
Molding speed(s/mold)	46 s/per mold (without the time for sand core loading)
Compacting pressure	≤15 MPa
Air consumption	0.6 m³(normal)
Humidity of sand mold	2.8%-3.5%
Drive method	Electric-pneumatic-hydraulic
Thickness of template	20-25 mm
Power supply	AC380V,50HZ,or according to your requirement
Power of the machine	17 KW
Net weight	16T
Machine size (L*W*H )	4490*2360*3600 mm

Other Products

Company Profile
Delin Intelligent Technology Co., Ltd 1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing machine, SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.3.Our machines are extensively used in producing and machining foundry parts,metal castings,plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!4.We have professional technical support and after sale service. With a whole line foundry machines, good quality, reasonable prices and stylish designs.
Packaging & Shipping
FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Contact Us
Export Dept
Delin Intelligent Technology Co., Ltd
Address: Xinglian Industrial Park, Nanan City, Fujian Province, China. PC. 362300
