US$40,000.00-48,000.00
|
1 set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Working Table Size
1300*2800mm
Max Cutting Length
2700mm
Max Cutting Thickness
65mm
Table Structure
Floating Adsorption Table
Spindle Power
5.5kw*3+1.1kw*3
Main Saw Blade Speed
4500-6000rpm
Scoring Saw Blade Speed
7000-9000rpm
Max Working Speed
25m/Min
Scoring Saw Blade Diameter
120mm
Main Saw Blade Diameter
300mm
Driving System
Servo Drive
Transport Package
Strong Strech Film Package
Specification
6000*2600*2300mm
Production Capacity
10sets/Month
Product Description
woodworking machine four sides door cutting saw
Product introduction:

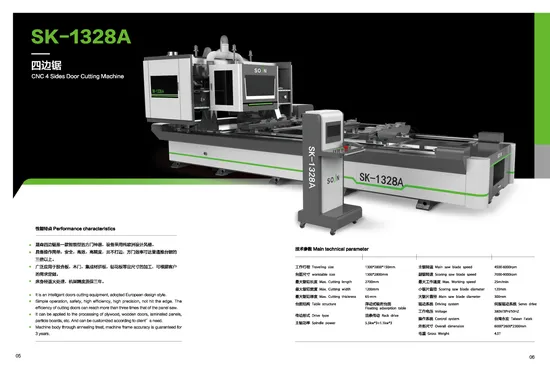

SK1328A CNC four-side saw is mainly used to cut the four sides of wooden doors, so that the wood meets the requirements of installation and size. Can be used in custom size trimming process for panel furniture, laminated board, blockboard, MDF, particle board, glass magnesium board, calcium silicate board, gypsum fiber board, wood board Technical parameters
| Travel size | 1300*2800*150mm | Speed of main saw | 4500-4600rpm |
| Work table size | 1300*2800mm | Speed of scoring saw | 7000-9000 rpm |
| Max cutting length | 2700mm | Max working speed | 25m/min |
| Max cutting width | 1200mm | Diameter of scoring saw blade | 120mm |
| Max cutting thickness | 65mm | Diameter of main saw blade | 300mm |
| Table structure | Moveable gantry | Driving system | Servo motor |
| Drive type | Rack and pinion | Weight | 4500kg |
| Motor power | 5.5kw*3+1.1kw*3 | Control system | Taiwan Fatek |
| Packing size of loading robot arm | 1320*1000*30mm
2750*43*35mm | Overall size | 5500*2300*2300mm |
>>
