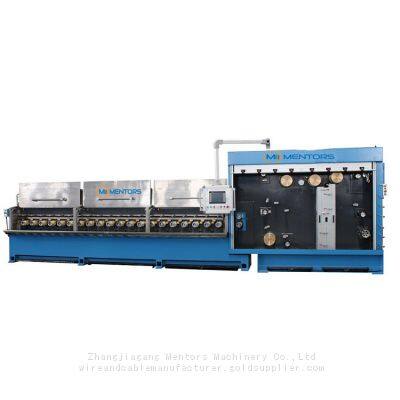

Multi Wire Drawing Machine for 8 wires

Product Details

Product Description

Product Description
1. Application:
Multi Wire Drawing Machine has 8 wires.
It has two different types which is depend on the quantity of machine drawing dies.
2. Main feature:
1). Wire quantity: 8 wires
2). Max.Inlet wire: 2.6 mm, outlet wire: 0.25-0.70mm
3). Raw material: pure copper
3. Parameters:

Machine Type	DT21/100.8.C
Drawing Wire No.	8 Wires
Max. Die No.	21
Max.Inlet Dia.(mm)	2.6
Outlet Dia.(mm)	0.25 ~ 0.7
Drawing Capstan Dia. (mm)	100
Max.Drawing Speed.(m/s)	30

4.Advantage:
1) More stability, high production efficiency, low noise and easy to operation.
2) Space saving.
3) Electricity Saving and Labour Saving .
4) High efficiency for next pay-off progress.
5) Quick die change system for dies quantity saving 30%.
6) Two clutches for faster speed.

---
