Customizable 40000pd Hydraulic Winch for Cranes Factory Logging Winch

Product Description

Product Description
CONTACT US

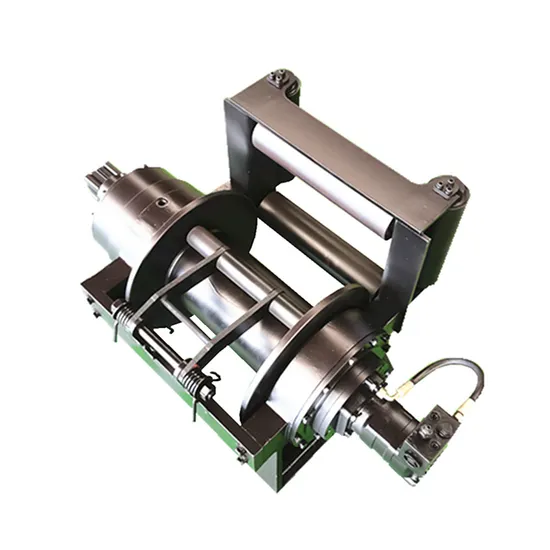

Hydraulic Winch with Planetary Gear Type
Introduction Hydraulic winches are used in a variety of lifting equipment applications. They can be classified into different types: built - in hydraulic winch, exposed hydraulic winch, high - speed hydraulic winch, and low - speed hydraulic winch.
Main Structures A hydraulic winch usually consists of a hydraulic motor, control valve, gearbox, roller, bracket, (clutch) rope, installation bracket, and other components.
Application Some hydraulic winches do not have a stand and are directly composed of a hydraulic motor, control valve group, drum, end shaft, and other components. These components can be matched according to customer needs and can be widely used in conveyor tensioners, construction machinery lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes, and davits. They are also used in heavy - lifting equipment such as oil rigs, offshore oil rigs, rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, etc.
FeaturesOnly flow restrictors and manifolds are on the outside of the drum. Hydraulic motors, the shell of the drive device, and other components are hidden inside the winch drum. Thus, it has a small axial size, is compact, and has an aesthetic appearance. It has high starting efficiency and transmission efficiency, low energy consumption, is reliable, and has a long service life. It operates with low noise. It has good economic performance. Product Parameters

Model	Max. Output torque (N. m)	Max. Line pull (kN)			Max. Line speed(m/ min)			Brake torque (N. m)	Hydraulic motor	Max. rope length (m/d)	Weight (kg)
		1st layer	2and layer	3rd layer	1st layer	2and layer	3rd layer
DJ010D	1500	11.80	11.10	10.50	74	78	83	900	BM-160	300/8	95
DJ3D	4300	33.00	30	28	17	18.7	20.4	460	R2K-195	110/13	85
DJ5	8750	50.00	46	42	7	7.7	8.4	304	BMS-160	50/18	185
DJ5D	7600	59.00	53	48	11.4	12.7	14	470	R2K-245	117/15	115
DJ-8	7290	78.40	69.3	62	5.6	6.7	7.5	380	BMER2-160	40/16	120
DJ8EXA	8545	78.40	67.8	59.8	8.2	9.4	10.6	720	BMSY-200	40/16	140
DJ8X	8545	78.40	67.8	59.8	8.2	9.4	10.6	720	BMSY-300	40/16	140
DP8A8	8545	78.40	67.8	59.8	7.6	8.8	9.9	720	BMS-160	30/15	120
DJ10	12485	98.00	84	73	4.8	5.5	6.3	430	OMS-200	75/18	195
DJ10A8	10584	98.00	85.5	75.6	7.4	8.5	9.6	720	BMER2-250	30/16	120
DJ12	12485	120.00	104	91	6	6.9	7.8	430	OMS-250	75/18	270
DJ15	17050	147.00	125	110	8	9.4	10.6	560	BMS-315	56/22	285
DJ20	23130	196.00	165	142	5.6	6.7	7.6	760	BMT-390	45/26	285
DJ24	35000	160.00	140	120	4	4.5	5	1200	OTM395/245	50/24	430
DJ25	37975	245.00	209	181	6.2	7.4	8.4	800	OMT-310	55/30	420
DJ40	65000	400.00	340	300	2	2.3	2.6	1800	OTM395/315	80/28	780
DJ50	78400	490.00	403	342	2.1	2.6	3.1	1050	OMT-400	55/40	685

Detailed Photos

Packaging & Shipping

Company Profile
FAQ
Q1:Are you a trading company or a factory?
A1:We are a trading company and have our ownfactory. We have both the price advantage of thefactory and the thoughtful service of the tradingcompany; and the advantage of taking responsibility.
Q2: Can you OEM production?
A2: Yes, we can customize the production according to the drawings.
Q3: How long is your delivery time?
A3: Usually 5-10 days.We always prepare somestocks.
Q4: Do you test all your goods before delivery?
A4: Sure, each item will be tested before loading
Q5: What's the warranty?
A5:Electrical parts 3 months

---
