Haichen Automatic Pet Preform Water Bottle Injection Moulding Machine

Product Description

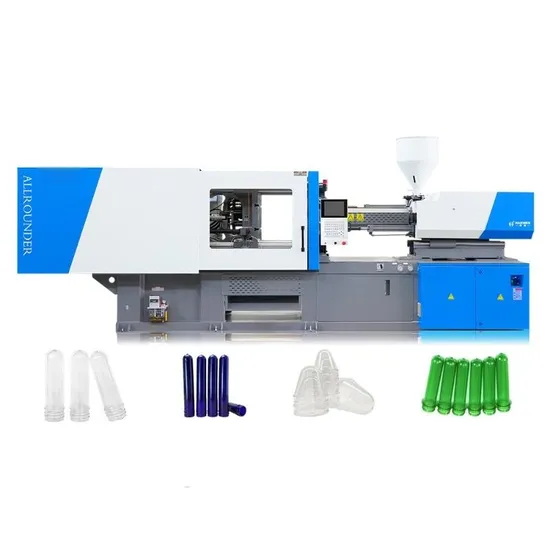

Haichen automatic pet preform water bottle injection moulding machine
Product Description
Preforms are made by PET injection molding machine. Beverage bottles, mineral water bottles, oil bottles, cosmetic bottles, plastic packaging boxes and so on, which are often seen in daily life, are made of preform blow molding.

What is pet preform manufacturing process?

Step1: Designing and manufacturing the preform mold
Step2: Injecting the plastic into the preform mold
Step3: Cooling the preform mold
Step4: Blowing preforms into bottles
Step5: Testing for PET bottles

Step1: Designing and manufacturing the preform mold

1. The first step in the design and production of a mold is to define the size of the neck of the preform, the weight and the output each day. With this information in hand, we will design and manufacture the injection mold according to the specific situation. 2. After the customer has negotiated the product information of the preform, our designers start to design the molds, and after the molds are completely designed, we start to manufacture them.
3. After the molds are made, we test them thoroughly. Like check cooling system, geometry, surface roughness, common indentations, etc.
Step2: Injecting the plastic into the preform mold
Before making plastic bottles, the preform is produced using an injection molding process (injection molding machine). Once the plastic is molten, a screw mechanism injects the molten PET plastic into a preform cavity in the shape of a preform. PET preforms are much more compact than fully molded bottles.

Step3: Cooling the preform mold
After the plastic is injected and fills the preform mold cavities, the product is cooled and shaped inside the mold. After cooling, the preforms are hard enough to be ejected from the mold.
However, the point to note here is that if the cooling effect is not good, the preforms will appear to be whitened. Because if the injection pressure is small, low injection speed, the first injection failed to fill the cavity, the first injection of the material flow front will be because of poor contact with the mold wall so that the temperature does not fall below the glass transition temperature, thus forming a large number of nuclei.
Step4: Blowing preforms into bottles
The process of blowing the preforms made by the injection molding machine into bottles is called blow molding.
Place the preform in a blow mould. Inject compressed air into the preform to inflate it until it is close to the cavity wall, and maintain the blowing pressure until the bottle cools. The plastic bottles are then removed after cooling.

Step5: Testing for PET bottles
Rigorous testing of PET bottles on the production line is the final step before packaging to ensure compliance with industry standards. Tests include: impact test, pressure test, permeability test, transparency check.

Product Parameters

INTERNATIONAL CLASS NO		HCK280-PET
INJECTION UNIT
Screw diameter	mm	70
Screw L/D ratio	L/D	25
Shot volume(theoretical)	cm3	1155
Injiection weight(pet)	g	1340
Injection rate	cm3/s	448
Injection pressure	Bar	1305
Screw pressure	rpm	167
CLANPING UNIT
Clamping force	kN	2800
Open stroke	mm	560
Space between tie bars(W×H)	mm	620*570
Max.Mold height	mm	620
Min.Mold height	mm	270
Ejector stroke	mm	150
Ejector force	kN	100
OTHERS
Pump pressure	Bar	175
Pump motor power	kW	38
Heating power	kW	16
Number of heating area	Segment	4+1
Machine dimension(L×W×H)	m	6.5*1.5*2.3
Oiltank cubage	L	300
Machine weight	t	9.5

Company Profile
Location: Ningbo,Zhejiang, China Company type: Manufacturing Year founded: 2005 Main product: Plastic Injection Mold, Plastic Injection Molding Machine from 50T-3000T The machines have high rigid structure and equipped with imported hydraulic and electrical elements, It also uses mixing metal screw head in order to have excellent plastifying performance and it's suitable for plastic injection molding products.


Services and Advantages
One-stop solution: complete solution from mold design to machine configuration.
Technical Support: Provide online and engineer support to ensure customer's production needs.
Fast delivery: average delivery time is 15 days.
After-sales service: provide comprehensive pre-sales, in-sales and after-sales service.
