Mortar-Filled Steel Floors for Office Areas

Product Description

Product Parameters
Features & Advantages
1.Substrate purity> 85%, has reached international standards
2.Can be used in high-demand computer rooms, data centers and etc
3.Environmentally friendly, waterproof, fireproof, rustproof
4.Excellent loading ability, better flatness, durable
5.Better stability in the environment of different temperature and humidity
6.Simple structure, flexible installation meets various requirements of wiring.

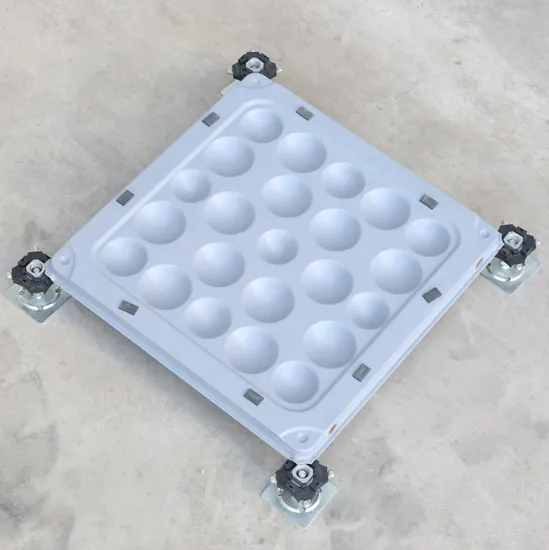

The flooring is available in two sizes: 500 (standard version) and 501 (open version)
Both specifications of the material are composed of painted steel plate, which is filled with lightweight mortar, the size is 500*500mm, the thickness is t28, the completion height is 55~500mm (other completion heights can be negotiated separately), the weight that can be borne is about 44kg per square meter, the load performance concentrated load is 5000N, the deformation amount is less than 5.0mm, and the non-combustion performance is one level (combustion 0).

suppor foot type Floor support feet are also divided into two types, and there is a certain difference in the height of the range that can be adjusted, as detailed in the figure below.

Supports standard foot types	Adjustment range	Supports the foot folding type	Adjustment range
GL 12*30~50	50~85	GCL 12*25~50	50~90
GH 12*65~110	85~160	GCH 12*60~110	85~160
GHH 12*135~455P	160~515	GCHH 12*135~455-P	160~515

Standard type (left) Edge type (right) Product specifications
Product specifications 500X500 (mm) are 4 pieces for a flat with 5 tripods, gray. Factory default 3 tablets &1 patch with wiring board &4 center tripods &1 hand tripod; Floor to tripod ratio 1:1.25. Actual operation: according to the actual requirements of the customer's procurement contract, the ratio of flat floor & floor with distribution board & center tripod & edge tripod; The excess of the normal ratio is charged per piece; No other attachments.

List of product usage methods It is mainly used for all requirements that high loading ability, better pavement performance high-end applications, such as office, banks, telecommunication rooms, intelligent office, commercial business, exhibitions, workshops, control rooms, converting rooms, and other industries program-controlled room, etc.
1. Install lighting fixtures on the back of the all-steel floor, which can make the floor have the function of night lighting or performance lighting.
2. Part of the floor can be converted into a flat small stool, which can constitute a temporary reception place, meeting place.
3. The steel floor with the floor edge fixing device to achieve the stability and non-shaking of the double-layer floor, if the subsequent maintenance is required, the floor is easy to disassemble, and it can continue to be used after maintenance.
4. There are two types of floor support feet to choose from, and the height of the support feet can be adjusted according to the required height, flexibly adapting to different floors.
5. The floor has strong bearing capacity, and the bearing capacity meets the approved load of 5000N (JAFA standard).
Detailed Photos
Shipping method

Our Advantages Qingdao Kiyoh Machinery Co., Ltd. mainly produces and operates OA network flooring and its accessories. The company covers an area of 40,000 square meters and a construction area of 15,000 square meters.
We always adhered to the business philosophy of "quality, customer first, and dedicated service", with an annual production capacity of 660000 square meters of various anti-static access elevated floors, which are widely used in scientific research, education, communication, power, aerospace, finance and other units, achieving stable social and economic effects.
The company has always adhered to the concept of customer satisfaction, continuous improvement and quality assurance, established product planning from the perspective of customers, and carried out design, material selection and experiment after full verification, and gradually moved towards standardization.
The company clearly recognizes that in order to provide customers with high-quality products, it must concentrate the enthusiasm, unremitting exploration, flexible conception and innovative spirit of every staff member in Jiyang. In this way, we can continue to provide customers with Jiyang's high-quality products and intimate services.
Qingdao Kiyoh Machine Materials Co., Ltd. complies with the high standards and strict requirements of Kiyoh Industrial Co., Ltd. in Japan, and each floor must be inspected by hand to ensure the quality of the product.
The company's products have passed the ISO quality system certification, and have passed the certification of the information industry anti-static product quality supervision center and the national building decoration materials quality supervision and testing center certification.
The products are mainly sold to Japan and Southeast Asian countries, and have been well received by customers.We have been upgrading the automation of production lines.
This increased our production output and improved product quality stability.
We are one of the few manufacturers that can support difficult and super large projects. Our company passed ISO9001 and SGS certification.

Our products are widely used in office buildings, data centers, control rooms, clean rooms, etc.
We'v been stuck to our core values: we are not just producing raised floor, we are producing values for our customers. Rich production and construction experience ensure us to offer professional solutions for contractors, builders, designers and owners.
The company adopts the business philosophy of choosing excellent materials, introducing sophisticated equipment, adopting exquisite workmanship, careful management, creating exquisite products, providing sincere services, and creating "self reliant" boutiques.
Our products have passed the inspection standards, if you have any questions, please communicate with the salesman, welcome to buy.

---
