Fully Automatic Scaffold Crossbar Welding Tool

Product Description

Product details
Applicable scope of welding parts:
1. Tube length: 0.5-3 meters.
2. Pipe diameter: Φ48
3. Number of workpieces: 1-2.
4. Tube length error: < 1mm (±0.5mm)
Product parameter

Control input power supply	Three phase four wire380V/50HZ
Main motor	86BGYH114 5A
Load duration	100%
Air source pressure adjustment range	0.2-0.8mepa
Maximum adaptive workpiece	3000mm
Spindle speed	0.5-20rpm
Spindle drive mode	Stepper motor
Spindle speed control mode	PLCcontrol
The adjustment mode of sending and withdrawing guns	pneumatic

It is our patent product,patent number:ZL2016 2 1060334.9

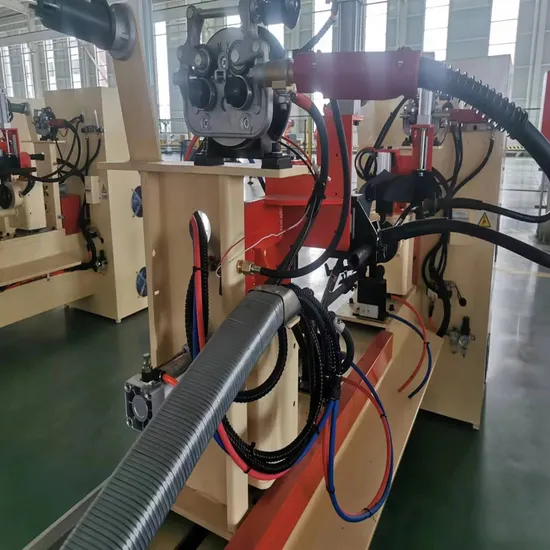

The equipment is the production of scaffolding cross bar automatic welding machine, mainly suitable for wheel buckle plate buckle bowl buckle scaffold cross bar automatic welding. Each machine is equipped with two high - performance welding machine, welding gun with humanized fine-tuning device, Angle adjustable.
Company honors and qualifications:
Corporate office area:
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
Frequently Asked Questions
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
Packaging&Shipping
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
If you have any questions,please contact us!

---
