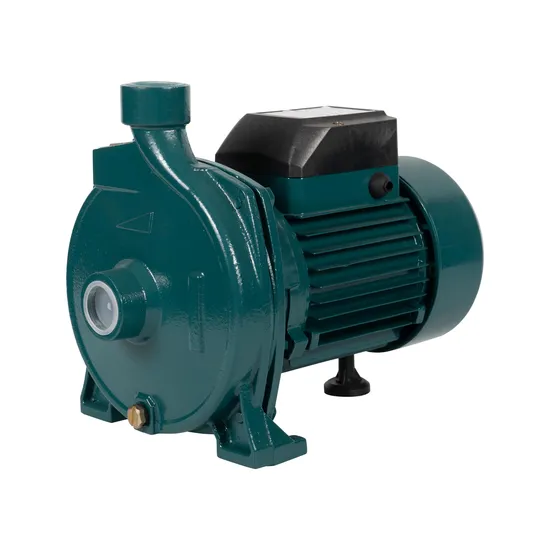

Cpm Series High Pressure Water Pump Centrifugal Irrigation Pump for Household Civil

Product Description

Cpm Series High Pressure Water Pump Centrifugal Irrigation Pump for Household Civil Product Description
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request
Operating conditions
Liquid temperature up to 60ºC
Ambient temperature up to 40ºC
Total suction lift up to 8m
Component Construction
Pump body:Cast iron
Pump support:Cast iron
Motor housing:Aluminum
Impeller: Copper impeller , aluminum impeller ,plastic impeller
Motor shaft:Carbon steel, AISI304 SS if request
Mechanical seal:Ceramic/Graphite (0.5HP), SIC/Graphite
Product Parameters

Model	Voltage (V)	Frequency (HZ)	Rated power (KW)	Maximum flow rate (m³/h)	Maximum head (m)	Rated current (A)	Maximum suction stroke (m)	Caliber (mm)	Speed (r/min)
CPM130	220	50	0.37	4.2	14	2	9	25	2850
CPM158	220	50	0.75	4.8	20	4	9	25	2850
CPM180	220	50	1.5	7.8	28	7	9	30*25	2850

Detailed Photos
Company Profile
Taizhou yide pumps co.ltd. is a service provider mainly provides solutions for aqueous fluid & related products. so far, the company has its own independent manufacturing plant & a good stable supply team.
In order to meet the changing market demands and keeps pace with the times, the company actively help customers to develop & supply of pumps, motors & related accessories, it accumulated a lot of mature experiences by serving customer in usage of plastic products. The company established a technical testing standards & cost-effective raw material supply channels, meanwhile also provides a complete sets of services in the field of injection mold (including the whole process analysis & optimization of product design, DFM product report, material screening, testing & mold reliability verification in actual production).
In order to provide a better & stable service for domestic & foreign customers, the company continues to improve the precipitation and also expanding to other suitable areas
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are manufacturer,located in Wenling City , Zhejiang Province in China.
2. Q: Is customized service available?
A: Of course, OEM & ODM both are available.
3.Q: What is your minimum order quantity(MOQ)?
A: 100 set
4. Q: How can I get the quotation?
A: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.
5. Q: How about your quality control?
A: Our professional QC will check the quality during the production and do the quality test before shipment.

---
