Submersible Sand Slurry China Manufacturer Excavator Driven Hydraulic Dredging Slurry Pump

Product Description

Product Description

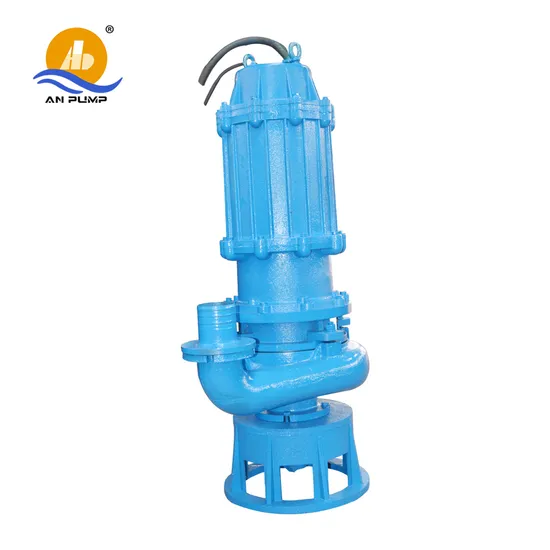

QSZ submersible slurry pump is our factory technical personnel absorbing foreign advanced technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into the medium to work hydraulic machinery. The product is excellent selection, advanced structure, wide flow channel through ability, metallurgy, chemical, mining, power plants and other enterprise for conveying containing sand, cinder, tailings and other natural particles or liquids, it is the ideal alternative of traditional slurry pump .
The products add a mixing impeller in the bottom by another except main impeller and can precipitate in the slag jet hit the water and solid particles into the mixing liquid, the pump in the case where no auxiliary means to achieve a transport of high concentration. Unique sealing device can effectively balance the pressure inside and outside of oil chamber, making mechanical seal both ends of the pressure to maintain a balance, the maximum guarantee reliable operation of the mechanical seal, greatly prolonging its life, the motor according to user requirements increase water testing, overheating and other protection devices that make products for harsh working conditions for long-term safe operation.
MODEL MEANING
QSZ SUBMERSIBLE SLURRY PUMP STRUCTURAL FEATURE
QSZ SUBMERSIBLE SLRURY PUMP PERFORMANCE DATA

No.	Model	Outlet Dia mm	Flow ( m³/h)	Head (m)	Power (KW)	Speed (r/min)
16	QSZ150-22-22	150	105	25	22	1460
			150	22
			180	20
17	QSZ200-15-22	150	140	17	22	1460
			200	15
			240	13.5
18	QSZ100-35-30	150	70	38	30	1460
			100	35
			120	31
19	QSZ140-30-30	100	105	33	30	1460
			140	30
			180	26
20	QSZ200-25-30	150	140	28	30	1460
			200	25
			240	21
21	QSZ250-20-30	150	175	23	30	1460
			250	20
			300	18
22	QSZ100-45-37	150	70	48	37	1460
			10	45
			120	42
23	QSZ100-50-37	150	70	53	37	1460
			100	50
			120	47
24	QSZ300-20-37	150	240	22	37	1460
			300	20
			360	17
25	QSZ100-60-45	100	70	64	45	1460
			100	60
			120	55
26	QSZ200-30-45	150	140	33	45	1460
			200	30
			240	27
27	QSZ150-45-55	150	105	47	55	1460
			150	45
			180	42
28	QSZ250-35-55	150	175	38	55	1460
			250	35
			300	33
29	QSZ300-30-55	150	210	34	55	1460
			300	30
			360	26
30	QSZ600-15-55	250	420	18	55	1460

No.	Model	Outlet Dia mm	Flow ( m³/h)	Head (m)	Power (KW)	Speed (r/min)
46	QSZ400-50-110	200	280	54	110	1460
			400	50
			480	45
47	QSZ500-35-110	200	350	38	110	1460
			500	35
			600	31
48	QSZ600-30-110	250	420	33	110	1460
			600	30
			720	26
49	QSZ800-25-110	300	560	28	110	1460
			800	25
			960	21
50	QSZ100-18-110	300	700	22	110	1460
			1000	18
			1200	13
51	QSZ780-26-110	300	545	29	110	1460
			780	26
			935	22
52	QSZ400-60-132	200	280	64	132	1460
			400	60
			480	55
53	QSZ500-45-132	200	350	49	132	1460
			500	45
			600	42
54	QSZ500-55-132	200	350	59	132	1460
			500	55
			600	52
55	QSZ800-35-132	300	560	38	132	1460
			800	35
			960	32
56	QSZ1000-22-132	300	700	27	132	1460
			1000	22
			1200	17
57	QSZ1250-15-132	300	875	18	132	1460
			1250	15
			1500	12
58	QSZ600-50-160	200	420	56	160	1460
			600	50
			720	43
59	QSZ650-52-160	200	455	56	160	1460
