Chicken Poultry House Farming Equipment Broiler Project

Product Description

Weifang U-Best Husbandry Equipment Co.,Ltd is a professional leading manufacturer and supplier of poultry control shed farm equipments in China. We have our own production line, so we can control the quality very well. Our poultry equipment has been exported to more than 40 countries and have good market
reputation! The equipment has passed ISO9001:2008 Quality Management System Certification ,CE and PC Certification By SGS/Soncap/SASO.
Any question, Welcome to contact Ms. Nancy Meng in U-Best company.
A Complete Set Poultry Control Shed Farm Equipments Include The Following Parts:
(1) main feed line of silo;
(2) pan feeding line system;
(3) nipple drinking line system;
(4) ventilation system;
(5) cooling pad system;
(6) climate and power controller system;
(7) heater
1. Automatic Main Feed Storge Line System of Silo or Manpower Hopper/Feed Bin
Silo or manpower hopper/feed bin is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper at the beggining each feeding line

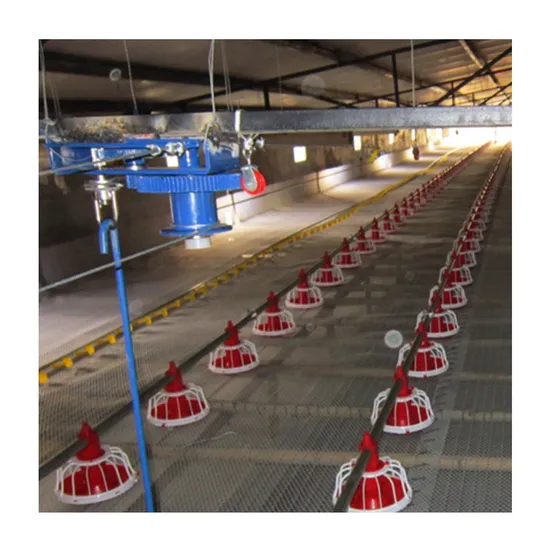

2. Automatic Pan Feeding Line System(Línea De Comedero/Alimentación) Automatically convey feed from vice hopper into each feeder pan/Comedero/Alimentacion.
Driving Motor: high-quality special driving reduction motor, Taiwan Wanxin and Italy Transtecno for your choice,0.75KW/1.1KW/1.5KW. V-Shaped Bin with Hopper: 70/90KGS capacity, hot dip galvanize sheet Feed Tube: Φ45mm diameter,hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2 Auger: Helical spring auger from South Africa Feeding ability:450kg/h
Maximum conveying length:150m Pan Feeder(Type of Plasson/Valco Double Grill/Bigdutchman): 4 pans/3 meters, 3 pans/3 meters.
Material: 100% virgin raw material PP
Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.
Hanging System: winch in the middle of house, hanging point 3m, all steel wire. Anti-roost System
3. Automatic Nipple Drinking Line System(Línea de Bebedor de Agua) This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
Three kind poultry automatic nipple drinking/drinker system for your choice:
Bigdutchman Type: square water pipe with galvanized support.
Plasson Type: round water pipe with aluminum support
Lubing Type: square water pipe with aluminum support.
Different Type Nipple Drinker But All Is Double Seal Structure which is absolutely no water leak. A Complete Nipple Drinking Line System Includes The Following Parts:
water front system: front controller for drinking system,including filter, water meter and doser medicator etc, which is used to adjust water supply and stabilize drinking volume. water pipe with nipple drinker and drip cup(type of Plasson/Lubing/Bigdutchman): 12nipple or 15nipple/3m, 20 nipple/4m. pressure regulator: double water-inlet-tube and flushing pressure regulator ensure large water flow. water-level display pipe hanging system
4. Automatic Ventilation System/Ventilator/Extrador This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.
36" Box Fan: 20800m3/Hr, 1000×1000×450mm, 0.5kw 50" Box Fan: 43070m3/H, 1380×1380×450mm, 1.1kw 50" Butterfly Cone Fan: 1.1KW 6 fan blades, Air capacity: 49452m3/h
5. Automatic Cooling Pad System(Evaporativo Panel de Enfriamiento) Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Color: black, yellow, green, red etc; Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame);1500mm, 1800mm, 2000mm(without frame)
Frame: Aluminium frame -high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame.
6. Automatic Environment and Power Control System/Controlador.
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.

The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.
7. Automatic Heater System/Criador/Calentador.
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.
Our Services For Your Project of Poultry Control Shed Farm Equipments:
1. Chicken House Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry Farm: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipments and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.

---
