Cylindrical tool grinding machine GD3080A

Product Description

This machine is mainly used for grinding the outer cylindrical and conical surfaces of small shafts, round sleeves, needle valves, plungers, etc.

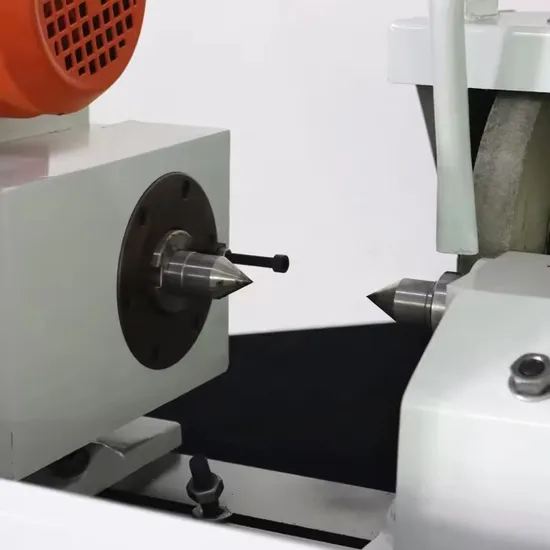

The tooling method can be realized by the top,the three-jaw chuck,the spring chuck and the special fixture.
It is suitable for processing small partsin instrument,automobile,electro mechanical,bearing,textile,ship,sewing machine,machinery and other industries. The longitudinal movement of the worktable of this machine tool is hydraulic and mariual. Both the grinding wheel frame and the head frame can be rotated, and the hydraulic system adopts gears with good performance. The machine tool is divided into 300mmaccording to the center distance,the through hole of the head frame can be modified 40mm,and the GD-3080A can be equipped with a four-jaw one-way chuck.

Model	GD3080A
Grinding diameter of OD	2~80mm
Grinding length of OD	300mm
Center height	115mm
Max workpiece weight	10kg
Workbench speed	0.1~4(r/min)
Grinding wheel line speed	35(m/sec)
Max travel of workbench	320
External grinding wheel size	Max 250*25*75 / Min 180*25*75
Grinding head motor power	2.2KW
Headstock motor power	0.37KW
Hydraulic system motor	0.55KW
Pump motor power	40W
Tail stock taper morse	Morse NO.3
Motor total power	3.16kW
size	1360x1240x1000mm
weight	950KG

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
