Paper Plate Dish Tray Making Machine for Customized Shaped Product

Product Description

Introduction:
LB 600Y-S Paper Plate Dish Tray Making Machine for Customized Shaped Product adopts straight-line forming, which is paper feeding, forming and collecting in one straight line. Compared with the traditional paper plate machine, LB 600Y-S has the advantage of stable forming, high efficiency and labor saving. LB 600Y is hydraulic machine with double stations, two stations are controlled by different motors, which means two stations can work separately, realize that one machine can produce different sizes and shapes of paper plates at the same time.The machine main working principle is hydraulic system, the hydraulic system has the advantage of easy operating and stable forming. Machine uses PLC and whole processing photoelectric tracking, machine works fully automatic,safely and intelligently, and can be directly connected to packing machine, supporting production line.
Compared with LB 600Y, the paper feeding part of LB 600Y-S is directly behind the mold, which not only can produce the normal round, square, and rectangular plates, but also can produce the strange shaped plates. It is the idea equipment for making different sizes and shapes of plates.
Product Made from Machine:
Main Technical Parameters:

Paper Plate Size	4-12"
Paper Grams	100-800g/m2
Paper Materials	Base paper, whiteboard paper, white cardboard, aluminum foil paper or others
Capacity	Double Stations 40-100pcs/min
Power Requirements	380V 50HZ
Total Power	8KW
Weight	1600kg
Specifications	3500×1300×1900mm
Air Supply Requirement	0.4Mpa, 0.3cube/min
Other Notes	Customize
Oil Cylinder	ML-80-150-5T-X
Cylinder Stroke	150mm

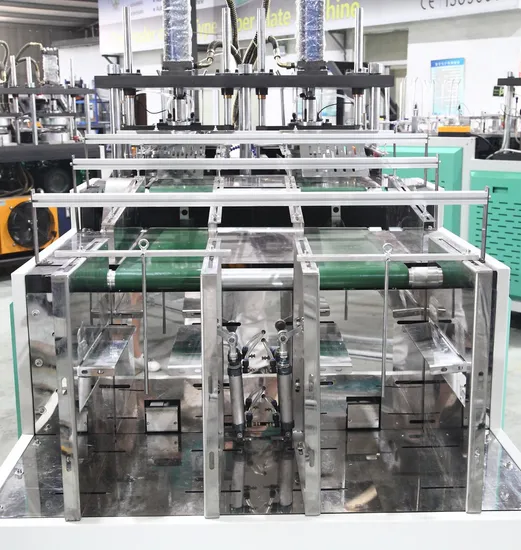

Machine Detailed Pic for Reference:
Configuration:

No.	PARTS NAME	ORIGIN
1	Frequency Transformer	Delta
2	(Touch Screen)	Delta
3	PLC	Delta
4	Hydraulic Motor	Zhejiang Zhonglong
5	Normally Closed Photoelectric	Shanghai Qide
6	Stainless Steel Heating Pipe	Jiangsu Rong Dali
7	Oil Pump	Taiwan
8	Counter Switch	Yueqing Tiangao
9	Normally Open Photoelectric	Shanghai Qide
10	Solenoid Valve	Taiwan Airtac
11	Bearing	Harbin
12	Temperature Sensor	Shanghai Xingyu
13	AC Contactor	Yueqing Tiangao

Packing and Loading of Container:

---
