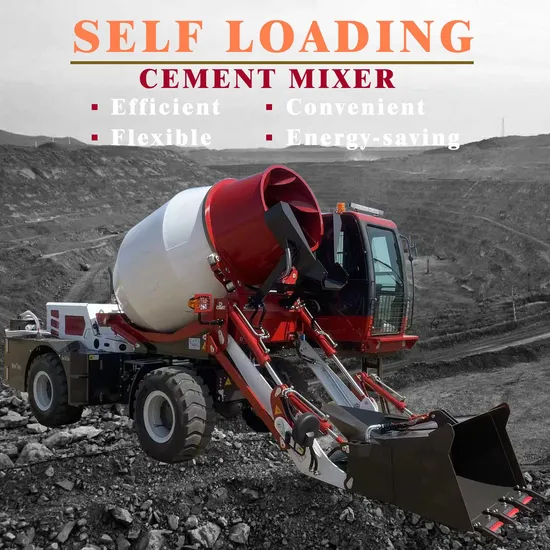

| DJH9035 SELFLOADING MIXER TRUCK | |
| MODEL NO | Model: DJH9035 |
| TYPE | Articulated mobile chassis, self loading, mixing, transporting |
| FUNCTION | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| PRODUCTIVITY | Up to 4.5 batches per hour, 15.5 cubic hours |
| drive | 4 x 4 |
| steering | Front steering |
| ENGINE | Yuchai Power Ycd4j22t Foshan 16, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW |
| SPEED | HIGH SPEED: 0-40KM/H; LOW SPEE:0-25KM/H |
| Gear number | Three forwards, three backwards |
| CAB | Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat |
| TIRE | TIRE: 12R-22.5 steel wire high pressure vacuum tire |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| TIPPING CHUTE | equipped with two 150CM Removable Chute to increase the length of discharge |
| Bucket: | 0.65 cubic, hydraulic gate |
| Bucket discharge switch | Hydraulic gate, electric control |
| OPERATION HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE |
| BRAKE | Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper |
| Steering: | Hydraulic articulated steering |
| Power System | 24V |
| Fuel tank Water tank | Fuel tank / Water tank: 1 * 800 litres water tank, 135 litres diesel fuel tank, 135 litres hydraulic fuel tank |
| Water Supply System: | self-priming driven pump, 24V self-timing Centrifugal pump, car washing machine |
| HIGH-PRESSURE WATER PUMP WASH | HIGH-PRESSURE WATER PUMP WASH |
| Weighing system | Electronic weighing system (language optional) |
| weight | 8100kg |
| ALARM LAMP | STANDARD CONFIGURATION |
| RADIO | STANDARD CONFIGURATION |
| Length, width, height / wheelbase / Wheelbase: | 7100mm*2750mm*3300mm*2700mm*2200mm |
| ESCAPE HAMMER | STANDARD CONFIGURATION |
| Astern sound prompt | STANDARD CONFIGURATION |
| Turning radius | 2900 mm |
| Other: Q345 manganese steel frame, excavator luxury cab, driving video, cement bucket, air conditioning Drum rotation: Discharge Port Height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered Transmission Mode: The engine is directly connected to the 280 split Torque converter, and is connected to the gearbox with double high and low speed through the transmission shaft to realize four-wheel drive CLIMBING: 40 ° | |
