US$1.00-99.00
|
1 Piece
(MOQ)
|
Basic Info.
Scanning Light Source
Laser
Network Scanning
Support Network
Interface Type
RS232, USB, COM, PS/2
Optical Resolution
600dpi
Application
Commercial Application
Transport Package
Standard Exporting Packing
Production Capacity
50000 PCS/Year
Product Description

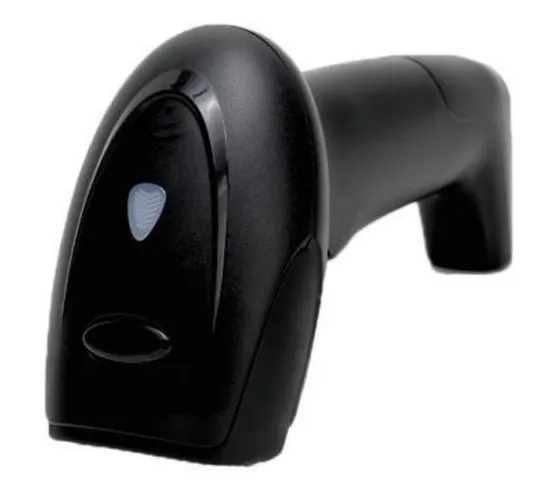

Quality POS Auto 2D Barcode Scanner OEM POS products Factory in China
Wired Full-Automatic Induction Laser Barcode Reader |
Performance Parameters |
Part Number | OA-6900 |
Light Source Type | Visual lasing diode; the wave length is 650mm. |
Trigger Mode | Manul and automatic optional (Note: This automatic trigger mode is the technology researched and developed by our company independently and more convenient and reasonable than the automatic induction technology used in the national and international barcode field.) |
Scanning Mode | Single-line scanning |
Scanning speed | 100±2 times /s |
Resolution | ≥4mil |
Printing Contrast Ratio | The lowest reflectivity difference is 30%. |
Bit error rate | 1/50 million |
Input voltage | 5VDC±0.25V |
Power | 250mW (Work): 325mW (momentary maximum) |
Current | 50mA (Work): 65mA (momentary maximum) |
Standby current | <20mA |
Light intensity | 3000-12000Lux |
Depth of field | 5mm-630mm |
Scanning angle | ±60°±65°±42° (Left and right, front and back, rotation) |
Decoding capacity | UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11 |
Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII |
Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, |
International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5 and China postal service code |
Prompt mode | Buzzer and LED indicator |
Cable interface | USB (standard): PS/2 and RS232 are selectable. |
External dimensions | L*W*H: 158mm*68mm*96mm |
Weight | 170g (excluding cables) |
Cable standard | Straight line,1.8m |
Interface type | RJ-45 crystal head |
Hull material | ABS+PC |
Temperature | 0ºC to 50ºC (Work): -40ºC to 60ºC (storage) |
Setting mode | Manual (scanning and setting barcodes according to the sequence) |
Safety Regulations | Laser safety class: EN60825-1, Class 1, state level-I laser safety standard |
EMC: EN55022,EN55024 |
Electrical safety: EN60950-1 |
Packaging level: IP52 |
Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times. |
1 D ,2 D wireless Barcode reader scanner
2D Auto Barcode Scanner With Bracket Holder
Our scanner widely using in different station in many Countries :
Our Hot sale Pos Products recommed
Our Production line of our pos barcode products in our factory :
Our packing exporting standard :
Our shipping by Air , Seaway Container , Raiway ,Road way by car :
About us :
Our factory located in Guangzhou City, Which the City ,quality materials using control well than other Area .
We offer OEM /ODM service for our products for each of our partner in different Countries.
We aiming to the products we produced and offerd to you better than others in most market have . You do not need worry Quality , Do not need worry After sales service ,
Be happy with our service and fast speed of dealing business for long term business .
Doing business with us will save time for you , save money for you , save problem for you .
My Name is Sherry , Yours reliable trusting friends.
>>
