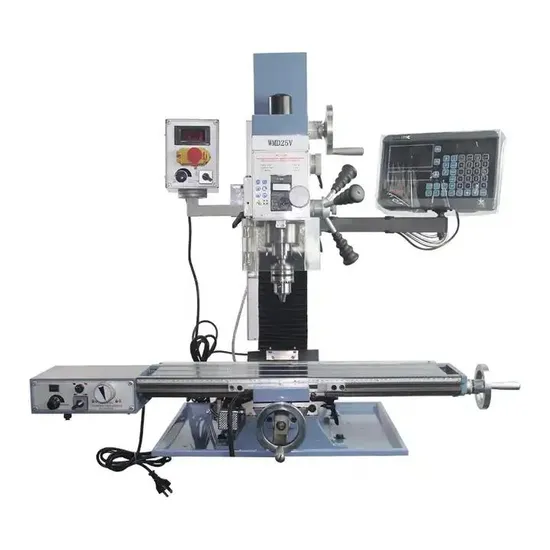

Multi-Purpose Vertical Machine Hobby Mill Drill Wmd25V

Product Description

Milling Drilling Machine WMD25V Feature

·It is used for school, science innovation center and science researching institution teaching demonstration

·It is suitable for home use DIY, airplane model accessories and clocks & watches accessories processing

·It can process Ti, stainless steel, 45 steel, iron, aluminium, copper------all kinds of nonferrous metal and wood, nylon-----all kinds of soft materials

Specifications	WMD25V
Max drilling capacity	25mm
Max face milling capacity	M16
Table size	700x180mm
Spindle tapet	MT3/R8
Cross travel	190mm
Longitudinal travel	520mm
Number of spindle speeds	Variable
Spindle stroke	50mm
T slot size	12mm
Spindle speed	20-2250rpm
Headstock tilt left and right	±90°
Distance from spindle to column	201mm
Distance from spindle to table	50mm
Motor	750W
N.W./G.W	120/125kg
Packing size	870x550x860mm

Standard Accessories	Optional Accessories
Spindle deep ruler	Speed displayer
Morse taper	Vice
Draw bar	Milling chuck set
Tool kit	Keyless chuck
Drill chuck with arbor	58PCS clamping tool kit
