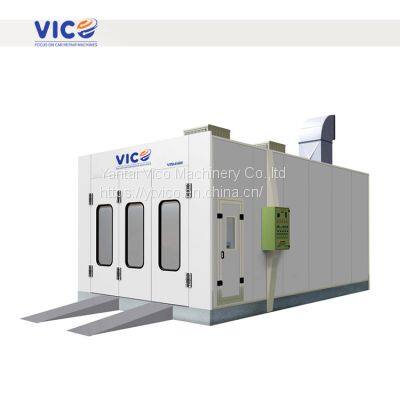

| Booth type | Full electric painting and baking booth, economical and energy saving |
| Outer dimension (mm) | 7000L*4000W*4370H |
| Inner dimension:(mm) | 6900L*3900W*2650H |
| Door dimension:(mm) | Front main door 3000W*2600H, side small door 680W*1800H |
| Heating system | By 10 sets of infrared lights, each set 3 pieces,1.0kw, and total baking power:30kw. Unit box open with down hanging type. Thickness 2.5㎡,500℃ wire, covered with 40*80mm cable tray. |
| Wall material | 50mm EPS wall, steel thickness:0.426mm, Socket type assembling. |
| Roof material | 0.8mm galvanized steel sheet. |
| Basement | The whole basement is made of galvanized steel, top of basement is 2 rows of grilles and 3 rows of diamond plate. All the materials are antiseptic and durable. |
| Ramps | Two pieces of 280*1800mm ramps. |
| Lighting system | Using LED lamps, energy efficiency and longer life time than ordinary light. With 45°installation at ceiling, 8 Unit box, 3x16W, ≥800Lux |
| Air intake system | 2 sets axile flow fans,1.1 KW/set, total air volume:24000m³/h; side draft and the air speed 0.35m/s; air changes:280times/h. Galvanized steel structure and covered by steel board. |
| Air exhaust system | None blower, back exhaust chimney, pressure air outlet. |
| Control system | Switch control: lighting, painting, baking, temperature setting, time setting, urgent stop. Size: 500*700mm |
| Filter system | Primary filtration: high grade fiberglass filter dust ≥10um in the inlet; secondary filtration: EU5CC-600G filters filter the dust ≥5um in the roof. TSP value≤1.4mg/m³. |
| Waste gas treatment | (Optional)Primary treatment: under basement filters; secondary treatment: activated carbon filters in the exhaust port. |
| Exhaust chimney | 3 straight tubes,1 elbow tube. |
| Available colors | Blue, Orange, red, grey white |
