| US$76,000.00-86,000.00 | 1 Set (MOQ) |

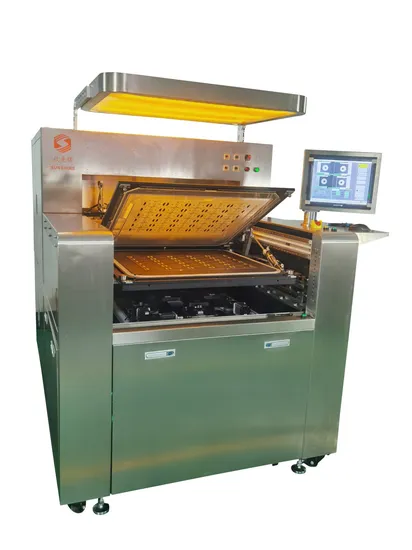

| product model | UVLED-A830 | |
Production specifications | PCB size | 305*350~550*650(mm) |
| Flim size | 0.1~3.2(mm) | |
| PCB thickness | 610*710(mm) | |
| intensity of light source | >500mw/cm2 | |
Working table | Exposure worktops | Double frame alternating operation |
| Exposure way | Single-sided exposure | |
| mesa structure | Glass VS industrial aluminum material | |
| Mesa material | optical glass | |
Light source system | Light source type | Mixed-band high-power UV LED |
| Light source output power | >3KW/ lamp | |
| Light source structure | Copper-based PCB plate array light panel | |
| uniformity | >=85% | |
| Parallel half Angle | <2º | |
| cooling-down method | hydrocooling | |
Counterpoint system | CCD quantity | 4pcs |
| CCD Mobile way | Automatic movement | |
| Contrast image examination | PCB board And the film after suction shrinkage check | |
| plate fixed form | Plate double-groove vacuum adsorption | |
| counterpoint mode (two-sided) | The negative dots are aligned to the graphical target of the PCB panel | |
| Installation mode of negatives | Automatic installation / manual installation | |
| Mechanical repetition accuracy | ±12.5μm | |
| Image read accuracy | ±5μm | |
productive power | capacity(do not contain cleaning time) | 2~4 piece/min |
| Contrast mechanical accuracy | ±15μm | |
| Light type | solder mask ink | |
| Display the line resolution ability after the picture | 4mil/4mil | |
| control system | operation interface | Large touch-screen operation interface |
| Control hardware | Industrial PC + motion control card, high reliability and stability | |
produce requirement | The way of loading and unloading | Artificial take and put |
| Production plate material placement requirements | Hanging pin production,Multiple pins are optional | |
| complete set requirement | current source | 3 Phase AC380V 50Hz 15KW |
| Environmental temperature and humidity | 22±2ºC,humidity 55%±5% Clean environment | |
| External air source | >=5kg/ cm2,60-180L/min | |
| External cooling water | >=4kg/ cm2,40L/min,temperature 7-12ºC | |
| filter system | 5000Clss Efficient filter | |
| Main material | SUS304 National standard plate | |
| other | Machine size | L2400*W1550*H2170mm |
| Machine weight | 1700KG | |
