Lw355 Horizontal Spiral Sludge Dewatering Hydraulic Filter Decanter Centrifuge

Product Description

Product Description Lw355 Horizontal Spiral Sludge Dewatering Hydraulic Filter Decanter Centrifuge
Horizontal screw decanter centrifuge is a kind of horizontal screw unloading, continuous operation settlement equipment. The working principle of this type of centrifuge is: the drum and the screw rotate at a certain differential speed in the same direction and at a high speed, the raw material is continuously introduced into the inner drum of the conveying screw by the feeding pipe, and enters the drum after acceleration. Under the action of the centrifugal force field, the heavier solid phase deposits on the drum wall to form the sediment layer. The conveying screw continuously pushes the deposited solids to the cone end of the drum, and then discharges them out of the machine through the slag discharge port. The lighter liquid phase forms an inner liquid ring, which overflows the drum continuously from the overflow port at the big end of the drum, and is discharged out of the machine through the discharge port. The machine can continuously feed, separate, wash and discharge materials at full speed. It is characterized by compact structure, continuous operation, stable operation, strong adaptability, large production capacity and convenient maintenance. It is suitable for the separation of suspension with solid particle size greater than 0.005mm and concentration range of 2-40%.
Feature 1. Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return.2. Spiral stoker blades: Surfacing welding tungsten carbide grinding.3. Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.4. Main sealing parts: material is Nitrile butadiene rubber5. Electrical protection: overload, phase loss, torque protection6. Main and vice inverter use common DC bus, vice motor's function is generating electricity ( save electricity)7. PLC remote control.

Product Parameters

Bowl ID (mm)	Bowl Speed (rpm)	L / D	G - Force	Capacity (m3/h)	Solids Removal (m3/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4500~4600	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4000~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
355/360	3200~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
500	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
550	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
600	2500~3200	3.0~5.0	2000~3500	20~95	7	37~90	7900	4200×1800×1350
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
750	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×150

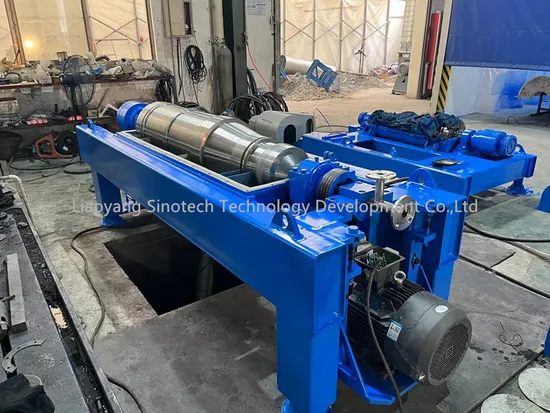

Detailed Photos

---
