Fast Butt Welding Machine in China

Product Description

Product Description

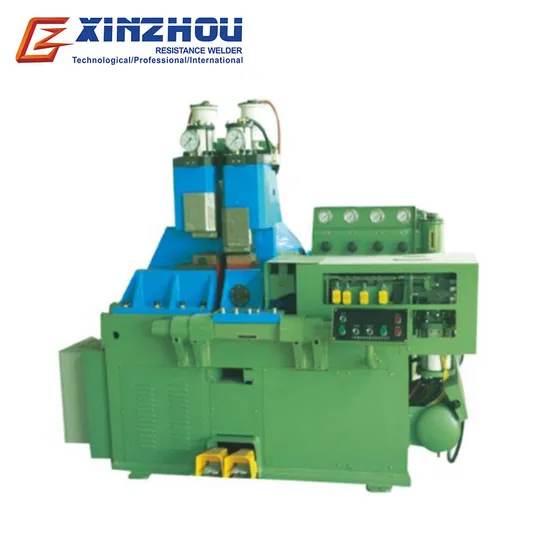

UN Series Pneumatic AC Type Butt Welding Machine

Model :UN-P-1/2
UN : Pneumatic AC Type butt welding machine
P : Rated Capacity
1 : Cylinder is in the front and vertical
2:Cylinder is horizontal
e.g.: UN-80-1
It means that the rated capacity is 80KVA ,the cylinder is horizontal .
Features :

1. The technology of butt welding is simple . The amount of shortening of product is small ,less metal burr .It is favourable to simply the rear process .

2. Two or three electric pulse welding has the function of preheating ,shaping and the annealing on the medium and high carbon steel .It is not only apply to compact wire butt welding, but also resolve the problem about butt welding the expanding material ,such as low-carbon Copper, pure copper ,brass ,low-carbon steel ,medium-carbon steel ,stainless steel ,Aluminum, metal wire .

3. It adopts the micro-computer control processor to control the procedure .It can adjust and control the parameter of clamping material ,welding ,upset forging ,stop and so on during the process of welding .The equipment is easy to operate and grasped .

4. Lever type pressurized structure make cylinder more powerful in unit area so that ensure the stability of welding .
Main Parameters for Reference:

NO.	Rated capacity	Input voltage	Rated frequency	Cooling water quantity	weight
UN-25-1	25kva	380v	50hz	4l/min	200kg
UN-40-1	40	380	50	4	200
UN-40-2	40	380	50	4	200
UN-80-2	80	380	50	4	200

NOTE: Those datas above are only for reference .
Detailed Photos
Company Profile
FAQ Q1: What is the price of your machine? Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us thefollowing information. * The material and thickness of your product * The minimum and maximum size of your product * The welding position of your products * The automation level that you want to achieve * It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you. Q2: What is the warranty period of your machine? Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost. Q3: What if my machine damaged doing the warranty period? Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine. Q4: What is the delivery time of your machine? Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine. Q5: Can we send the sample to you for welding test? Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal? Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process. Q7: What's your payment terms? Answer: we can accept the following payment terms: T/T, L/C, Western Union Q8: How can we install the machine? Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.

---
