Basic Info.
Transport Package
Carton and Pallet
Production Capacity
10000 Sets Per Month
Product Description

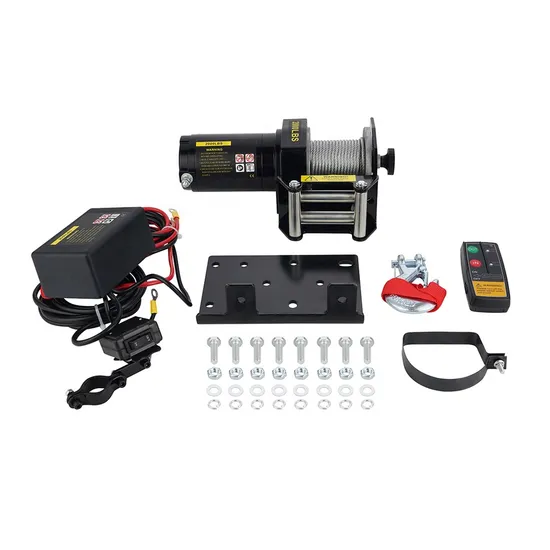

This ANTAI WINCH 2000 DC Series is a small 12 volt winch. It is vehicle mounted and has a pull capacity of 2000 pound. It has a 9.2mm wire rope.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle
Although this winch might be smaller in size, it's big on value. The ANTAI 2000 DC Utility Winch has all of the features you'll want, and it's small size allows it to be mounted in tight spots. Designed to pull lighter loads, this winch will help you move more material in less time.
2000lb (907kg) capacity with plenty of power Pure copper motor and power cable Strong 1 hp permanent magnet DC motor with outstanding duty cycle 4mm x 9.2m wire rope Hand switch and wireless remote can be used Ergonomic, multi-directional clutch lever Durable, differential planetary geartrain Dynamic braking for great control and holding power Steel fairlead, Hook, Mounting plate One year warranty 2000LB, WINCH SPECIFICATIONS
| Rated line pull | 2000lbs(907kgs) single line |
| Motor | Permanent magnet,0.7kw/1.0hp |
| Gear reduction ratio | 150:1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø4mmx9.2m |
| Drum size (Dia x L) | Ø1.18"(30mm) x2.8"(71mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 11.3''x4''x4.1''(286mm X100mm X105mm) |
| Mounting bolt pattern | 80mm, Ø8.5 |
| Weight | N.W.7kg G.W.8kg |
| Packing size | 355 x 265 x 170mm 1PC/CTN |
| CBM | 0.02m3 |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 10.5(3.2) | 8 |
| 500(227) | 9.2(2.8) | 30 |
| 1000(454) | 7.2(2.2) | 60 |
| 1500(680) | 5.2(1.6) | 90 |
| 2000(907) | 2.9(0.9) | 120 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull
lbs(kgs) | Total Rope on Drum
ft(m) |
| 1 | 2000(907) | 5.9(1.8) |
| 2 | 1630(740) | 8.2(2.5) |
| 3 | 1380(627) | 13.1(4.0) |
| 4 | 1190(540) | 21.3(6.5) |
| 5 | 1050(477) | 30.0(9.2) |
>>
