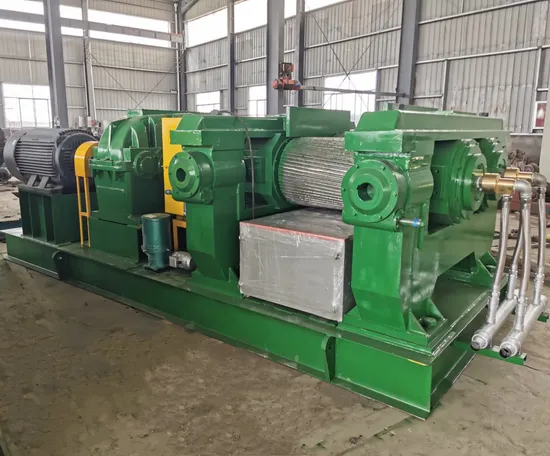

Tire Cracker Mill Xkp560 Xkp610 Xkp680 / Tire Crusher Machine Rubber Powder

Product Description

Tire cracker mill XKP560 XKP610 XKP680 / tire crusher machine rubber powder /XKP710 tire recycling equipment. Product Description Introduction Cracker mill is used for the breaking process from used tire scape to rubber powder. It is used for waste tire recycling industry. Assistant Equipments: * Power assembly
* Big conveyor belt: 8700mm*1000mm(3.0kw)
* Big vibrating screen: 8800mm*1000mm (7.5kw)
* Small vibrating screen: 2600mm*900mm(1.5Kw) , with 5 sets magnetic separators (0.75kw / set)
* Small conveyor belt : 3800mm*700mm(1.5kw)
* Wind-Induced system 1 set (4.75kw) Product Parameters

Type	XKP-560	XKP-610	XKP-680	XKP-710
Grooved roller dia.	560mm	610mm	680mm	710mm
Smooth roller dia.	510mm	560mm	610mm	610mm
Working length of rollers	800mm	1000mm	1000mm	1100mm
Motor power	132KW/160KW	185KW/200KW	250KW	280KW
Speed reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer
Roller support type	Bearings	Bearings	Bearings	Bearings
Lubricating method	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating
Machine weight	Around 20 ton	Around 25ton	Around 30ton	Around 32ton
Production capacity(24mesh)	Around 900kg/h	Around 1000kg-1300kg/h	Around 1200-1500kg/h	Around 1300-1600kg/h

Detailed Photos
