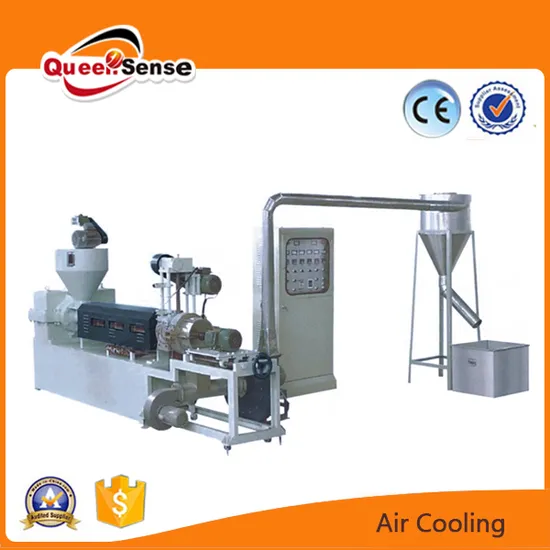

Plastic Pet Recycling Extrusion Machine with Air Cooling Line

US$12,000.00-16,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

SJ-A90/100/110/120

Screw

Single-Screw

Automation

Computerized

Non-Computerized

Certification

QS, GMP

Screw Diameter

90mm/100/110/120

Screw Speed

10-100r/Min

Main Motor Power

22kw

Total Weight

3000kg

Transport Package

Wooden Box

Specification

Trademark

QUEENSENSE

Origin

Wenzhou China

HS Code

8477201000

Production Capacity

1000PCS/Year

Product Description

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical VariablesMain Technical Variables:

Model	SJ-A90	SJ-A100	SJ-A110	SJ-A120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem (L/D)	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4600×1500×1800
