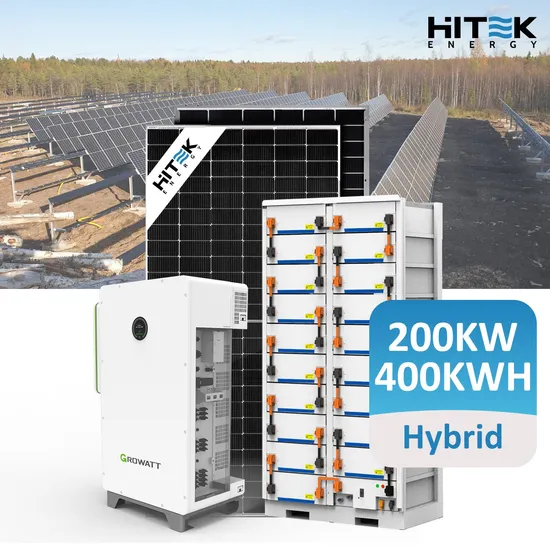

on and off Grid Hybrid Solar Energy System 50kw 100kw 150kw 200kw Hybrid Solar System

Product Description

Product Description
Features of HiTek Energy Storage System
1. HiTek Provides the Integrated System Solution with One Stop Service.
2. Supports Diesel Generator Access, 3Units Parallel.
3. Faster Installation & Debugging.
4. Peak Shaving/Back Up Power/Self-consumption.
5. The Entire System has been Fully Tested and Works PerfectlySystem Configuration

Product	Model	HTCI-100KW/200KWh	HTCI-200KW/400KWh	HTCI-300KW/600KWh
PV Module	HT-560M-72	187	374	561
Inverter	WIT-100K-HU	1	2	3
Batttery	HT51280H	14	28	42
	Control Box	1	2	3
Connector	MC4	40	80	120
PV cable	PV1-F 1*4mm2	1100	2200	3300
ATS(opt)	ATS300KW	1	1	1
AC Cabinet(opt)	XL-1	0	2	2
Remote moniting	WIFI or SEM-X	1	1	1
Mounting Structure	Roof/Ground	1	1	1

This product is not a specification, need to be configured according to your own needs, if necessary, welcome to contact our salesman to customize your exclusive solution.
How It Works?
Warranty
System Components
Mono Solar Panel
Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kgHybrid Solar Inverter
Scalable system configuration, extend to 300KW
Support UPS function and black start
100% unbalanced load when backup
110% continuous AC overloading capacity
Support remote control of DG
Multiple MPPTs inputs
Grid-support functionsOnline Monitoring System
Open Station Supports one-click
Installation and registration Problem
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure
data security and reliabilitySolar Battery Packs
Rack mounted
Deep Cycle long lifespan
High discharge performance
Easy installation and Maintenance-free
AGM/GEL/LiFePO4 Lithium Ion Battery Type
2V/12V/48V/High Voltage Battery
More than 6000 times, up to 90% DOD
Wide suitability of ambient temperature rangeDC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC /1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 YearsPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI60O5 & SUS304 BOLT
MID&END CLAMPS: 30, 35, 40MM
L FOOT ASPHALT SHINGLE MOUNT & HANGER BOLTOPTIONAL
CABLE CLIPS &TIE OPTIONAL
GROUND CLIPS & LUGS OPTIONALTechnical Support
Packaging & Shipping
Global Projects
Company ProfileHITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
Helping you save money on your electric bill is our responsibility. We take seriously.
We understand that you need more than just a solar system manufacturer, you need a brand that you can partner with for life.Let's work together for a better, brighter and greener future.
