Flexible Corrugated PTFE Hydraulic Hose Braided with 304 Stainless Steel

Product Description

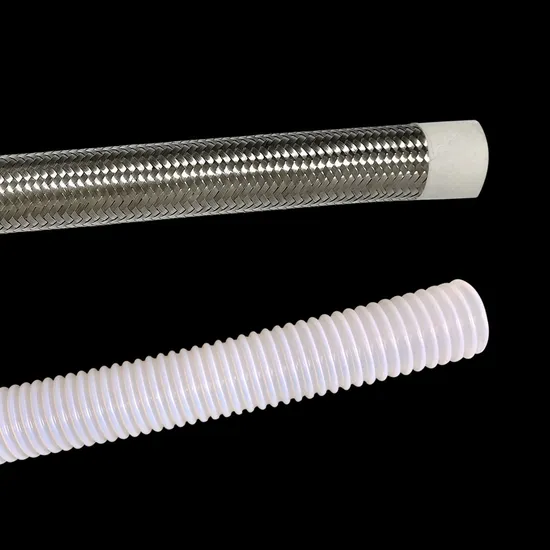

Product Description PTFE corrugated hose braided with 304 stainless steel
1. We can help to add different fitting on both ends, please don't hesitate to contact us!
2. If you need ultra high working pressure, we can meet your need!
3. Material: virgin PTFE+304 stainless steel.
4. Anti-both low and high temperature, working temperature range: -70C~+260 Celsius degree.
5. High pressure resistance, we can offer single braid and double braid.
6. Advantages: flexible, non-stick, non-toxic, anti-corrosion.
7. It is widely used in chemical, food and medical and pharmaceutical industries.
Technical Date Technical date of PTFE Corrugated hose

Inner Diameter (inches)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)
1/8''	183	550	24
3/16''	170	510	28
1/4''	140	420	32
5/16''	133	400	36
3/8''	127	380	59
1/2''	110	330	80
5/8''	73	220	92
3/4''	67	200	105
7/8''	58	175	120
1''	50	150	135
1''+1/2''	27	80	135
2''	18	55	165

Certifications
Company Profile Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485 Have 2 cleanrooms, to produce food and medical grade tube. A professional manufacturer of PTFE hose, FEP hose and PFA hose

---
