Stone Picker with Four-Wheel Tractor Stone Picker Pick up Stone

US$14,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
4YC-1600
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ISO
Color
Blue
Name
Stone Picker
Model
4yc-1600
Matched Power
60-120HP
Work Depth
25-30cm
Work Wdith
1600mm
Weight
1500kg
Suitable Row Space
80cm
Size
4500*2200*2550mm
Match Type
Traction Rear Suspension
Efficiency
0.4-0.55ha./H
Loss Rate
<2%
Funciton
Stones and Tocks Picker Cleaning
Transport Package
Nude
Specification
4500*2200*2550mm
Trademark
no
Origin
Acme
HS Code
78000
Production Capacity
6000

Product Description

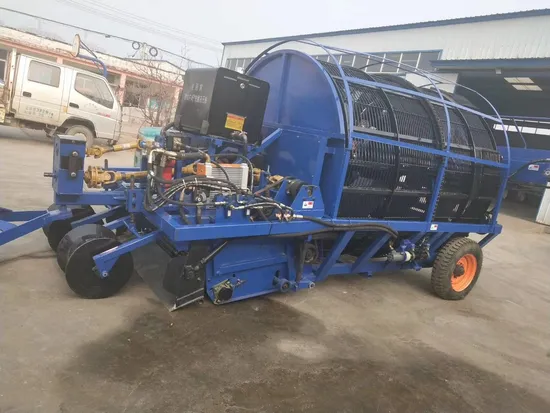

Stone picker with four-wheel tractor stone picker pick upstone
Introduction of stones picking machine:
It can be matched with 60-120hp four-wheel tractor, which is connected to the stone picker through three-point suspension of the tractor. The tractor will drive the stone picker to work, The excavation knife is inserted into the soil to collect the stones and soil to the front chain row, and then carried out to the rear roller. The roller rotates to leave out the soil, and the stones are loaded by the conveyor belt.
a new type used for stones rocks picking, Ginger, radix pseudostellariae, Chinese herbal medicine and other underground crops harvesting. This machine has the characteristics of clean harvest, high harvest efficiency, low breakage rate, light operation without vibration, no clogging, quick leakage of soil, simple structure, long service life, etc., which improves the production efficiency and saves manpower and material resources.
Model 4YC-1600
Matched power 60--120hp
Working depth 25-30cm
Working width 1600mm
Weight 1500kg
Suitable row spacing 80cm
size 4500*2200*2550mm stone picker
2500*1400*850mm pulling yoke
Matching type Traction rear suspension
efficiency 0.4-0.55ha./h
Loss rate <2%
