Cx2121 Diamond Multi-Wire Saw Cutting Machine for Magnets Optical Glass Processing Tool

Product Description

Product Description

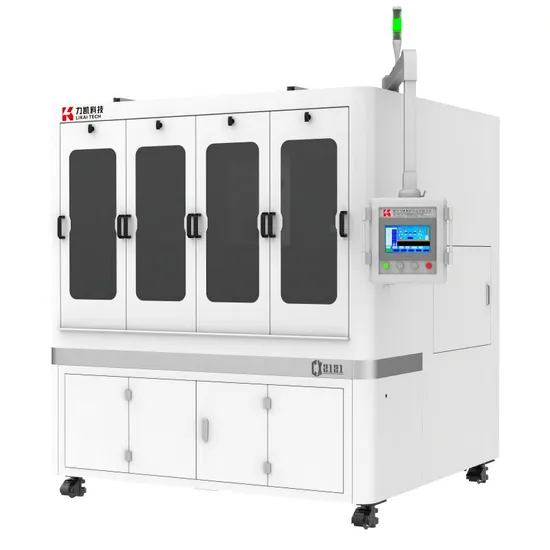

CX2121 Multi-wire Saw

CX2121 Multi-wire Saw is designed with double-workbench to meet the demand for batch processing of super-hard materials such as Sapphire, Quartz Crystal, Optical Glass, Special Ceramics, Metal Composite/Alloys into straight sheets.Five wire guide rollers design is mainly used to cut straight sheets of 5mm-60mm thickness.
Product Features
>Double Workstation
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Flexible Roller System
Achieve the cutting of products within 5-60mm thickness with the flexible wire winding for 3 rollers and five rollers.
>Easy Operation
Roller cutting system, workbench, tension system, take-up and pay-off and wire winding system are set in a plane for easy operation.
>Optimized Pulley Design
6 pulleys design can reduce wire breakage rate and achieve convenient wire winding.
>Flexible Cutting
The left and right slide table on the workbench can be independently moved back and forth, and the left and right sides can cut products of different thicknesses.
>Convenient Insttallation and Removal
The rollers are fastened with screws and equipped with special electric wrench for convenient disassembling and installation.
>Swing Cutting Function
Adding swing function to workbench to achieve the opening square cutting of semiconductor silicon carbide.
>Wire break memory system.
Product Parameters

Detail	Parameter
Model	CX2121
Maximum work size	204x210x210mm
Slice thickness	5-60mm(wire winding number:≤40)
Workbench quantity	2
Roller out diameter *Workable width	(φ160-185mm)x210x5
Wire diameter	φ0.20-φ0.37
Wire spool storage	20km(φ0.25mm)
Maximum running speed	1200m/min
Travel of worktable lifting	240mm
Travel of worktable translation	100mm
Worktable swing angel	0
Cutting method	Vertically upward movement
Cutting feed speed	0.1~99.9mm/min
Cutting fluid	Water-based cutting fluid or cutting oil
Fluid storage	800L
Fluid flow rate	200L/min
Power supply	380V±10% 50HZ
Power	22Kw
Size L*W*H	2200x1900x2400mm
Weight	3000kg

Cut Samples
