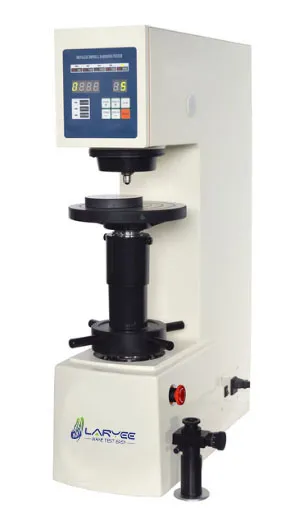

Motorized Brinell Hardness Tester (HBE-3000)

Product Description

Introduction:
Steel Brinell Hardness Tester is a lab instrument to measure the hardness value of all kinds of metals according to Brinell hardness principle ASTM E10 and ISO 6506. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals industries, as well as in the laboratories, universities, college and scientific research institutes.
Features:
1. Test force loading and unload motorized without heavy weight.
2. Use 0.5% compression sensor to feedback.
3. Microchip control system, automatically compensate the test force lost during testing.
4. Test force and load dwell time can be set on the touch-keyboard, reliable repetition, precise reading, and easy operation.
5. Reading value by magnifier and value table as standard accessories.
6.With a detailed operating manual and operation video CD.
Specification:

Description	HBE-3000
Test force	612.9N(62.5kg), 980N(100kg), 1226N(125kg), 1839N(187.5kg), 2452N(250kg), 4900N(500kg), 7355N(750kg), 9800N(1000kg), 14700N(1500kg), 29400N(3000kg)
Hardness measuring range	8-650 HBW (Hard metals steel ball)
Hardness value Max. tolerance	± 3.5%(HBW≤ 125) ± 3.0%(125< HBW≤ 225) ± 2.5%(HBW> 225)
Magnification of microscope	20 x
Min. division of microscope' s drum wheel	0.005mm
Max. height of specimens	225mm
Max. width of specimens	135mm
Power supply	AC220V 50/60Hz
Package Dimensions (D× W× H)	893× 720× 470mm
Gross weight	160kg
Net weight	130kg

Laryee Technology Co., Ltd. is known as a professional manufacturer of materials testing equipment for determination of mechanical properties. Laryee's materials testing machines are highly engineered and stable, which thanks to the advanced production techniques and strict quality requirements throughout all phases of design and construction. Our experienced technical consultants can provide you with all-round technical support and advice by assisting you to find the best solution to your requirements and offer you the most suitable model for your needs. Our support also extends to responsive after sales service.

---
