Small Round Baler of Shanghai Star High Efficiency Easy Maintenance Simple Operation

Product Description

MINI ROUND BALER-MRB0855N/T
High mobility and impressive performance
Its light and compact body allows efficient operation in small fields,
and it can automatically pick up wheat straw, bale, and cut the rope automatically,making it an invaluable assistant.
Product Description
Rear view of the STAR mini round baler

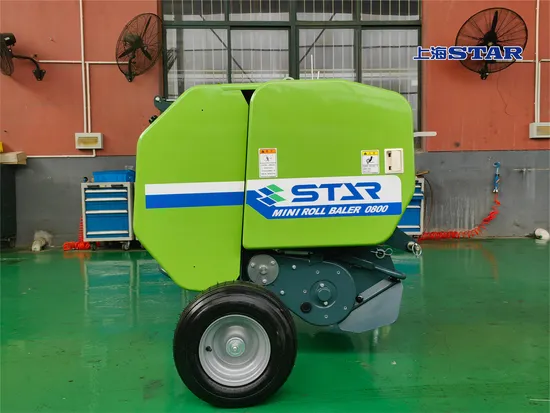

Side view of the STAR mini round baler
Top view of the STAR mini round baler
Product Specifications

MODEL	MRB0855T	MRB0855N
Binding	Twine	Net
Pick-up
Working Width(cm)	80	80
Number of Row Tines(pcs)	6x4	6x4
Both end of tine(cm)	61.6	61.6
BALE Chamber
Diameter(cm)	50	50
Width(cm)	70	70
Number of Steel rollers(pcs)	10	10
Require Tractor Power
Power (kw)	22.1~36.7/30~50	22.1~36.7/30~50
Working Speed(km/hr)	3-5	3-5
PTO Shaft Speed(r.p.m)	540	540
Overall Dimentions
Baler Size(cm)	115x130x130	115x130x130
Aprox.Weight(kg)	330	330
Tire Size	16L-6.50-E-4PR	16L-6.50-E-4PR
Voltage(Control Box)	12-13.8V	12-13.8V

Baler Highlights
Choose between a double twine binding device or a net binding device.
1) Twine binding (Model:-T)Ensures high efficiency with low-cost binding material.
2) Net binding (Model:-N)Offers excellent efficiency and minimal crop loss. Both devices are located at the front, making the binding process easily observable from the driver's seat.
3) Advantages of Small Size
With its compact design and 3-point hitch, it can easily maneuver in tight fields compared to traction-type balers. Its light body also makes it suitable for wet fields.
Light and compact body enables you to work in small field
4) Easy Bale Handling
Bale size of 70cm width x 50cm diameter is easy to handle, especially for women and the elderly.
When herbage moisture is below 20%, the bale weight can reach up to 28kg. For wet herbage, the weight can range between 30kg and 40kg. Despite its small size, the bale is easy to manage.
Two adult men, each weighing over 65kg, stood on the bale without causing it to loosen.

	MRB0855N		MRB0855T
Moisture Content of Herbage	Wet	20%	Wet	20%
Weight (kg)	35kg	22kg	35kg	22kg
Size (L*W*H) cm	70cm x50cm x70cm		70cm x50cm x70cm

One man stood on the bale Two men stood on the bale
5) Easy Bale Density Adjustment
Bale density can be set to 8 different levels with simple pin installation.
6) Double Steel Rollers
Highly durable steel rollers ensure a stable and noiseless compression system with minimal power fluctuation compared to hay square balers.
7) Switch Box
All operations are controlled from your tractor seat using the switch box. A buzzer alerts you when the set bale density is reached.
8) Safety Device
The gearbox output is protected by a shear bolt. In case of overload, the shear bolt will break, safeguarding the machine from damage.
9) Power Package
This power-packed unit comes equipped as a standard feature for tailgate opening, eliminating the need for any hydraulic output from the tractor. This innovation allows compatibility with a wide range of tractors.
10) Tire Tread
The adjustable tire tread ensures it does not follow the tractor's wheel tracks, offering optimal performance.
Product Introduction
1)30~50 horsepower tractor for traction; the design is flexible for easy transition.
2) The picker utilizes a spring-tooth pick-up system, offering excellent efficiency,Experience minimal forage grass loss like never before with our cutting-edge Less Trouble Hay Baler. It ensures an effortless picking process without disturbing grass strips, dramatically reducing friction and collision loss for optimized performance.
3) The innovative side guards of our pickup system are instrumental in effectively gathering straw, ensuring maximum efficiency and minimal wastage.
4) Thetransmission device features an axially symmetrical design, maintaining a low center of gravity to deliver extraordinary stability and durability.
5) Our state-of-the-art rope feeding mechanism, driven by a worm gear reducer, powers a sophisticated four-bar linkage system. This ensures reliable operation and a superiorbundlingrate, enhancing overall productivity and efficiency.
Benefits for Buyers
1) Experience peace of mind with our exceptional after-sales service system, guaranteeing worry-free ownership and prompt resolution of any issues you may encounter.
2) The baler operates autonomously, seamlessly handling the entire process from rope leading, wheat straw pickup, baling, to rope cutting. This complete automation saves time and significantly enhances overall baling efficiency.thewheat straw, bale, and cut the rope, ensuring time savings and improved baling efficiency.
3) Easily adjust the rope loop and bale density to prevent scattering or mess, resulting in compact, breathable bales that are simple to transport and store.
4) Streamlined loading, unloading, and transportation processes dramatically reduce labor costs, optimizing your operational efficiency.
After-Sale Service:
1) Benefit from a 12-month comprehensive warranty, ensuring ultimate peace of mind and security.
2) Stay informed with real-time tracking of your baler's shipping status, providing you with complete visibility.
3) Access working videos and detailed instructions for seamless operation and maintenance of your baler.
4) Enjoy swift delivery of baler parts within 3-7 days during the warranty period, minimizing downtime and disruption.
5) Receive timely and responsive technical support to quickly address any issues and maintain optimal performance.
6) Access round-the-clock customer service available 24/7, ensuring you have support whenever you need it.

---
