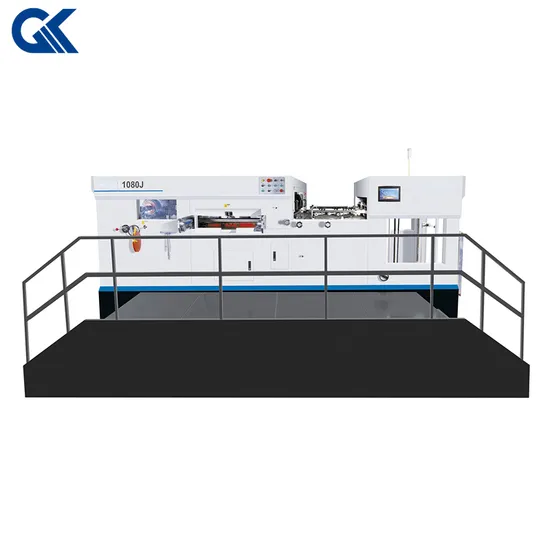

Automatic Plastic Sheet Flat-Bed Die Cutting Machine with Heating Device (AEM-1080J)

Product Description

Product Description ★ Complete design, accurate installation, high stability, high security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision interval mechanism, high cutting precision, running steadily.
★ Adopt European feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
Features
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
★ Temperature controlling system can be divided into eight zone, the temperature can be adjusted separately.

Detailed Photos Feeding section:
★European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion.
★Electronic double detector.
★Wear-resisting PU feeding wheel.
★Feeding timing fine tuning device.
★Adjustable rubber wheel and brush wheel ensure paper fed to the right position.
★Front lay detector ensure the paper fed to the right position.
★Adopt double side lay to meet the requirement of different printing register.
Host machine section:
★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
★Alloy crankshaft with special process treatment.
★Wear resisting worm, worm gear.
★Convenient die flipping device.
★Cycling lubrication oil supply system with high pressure oil pump from Taiwan
High precision interval mechanism.
★Pneumatic brake clutch device from Italy
★Japanese SMC rotary joint.
★Import gripper bar chain.
★Pneumatic die locking device.
★High hardness, strength Ti-Al alloy gripper.
★Precise pressure adjust device.
★PLC and man-machine interface from Taiwan.
Heating section:
★Eight thermostatic temperature zone, can be adjusted separately.
Delivery section:
★Automatic arrange device, 2 blowing devices ensure all the paper could be well collected whether thin or thick.
★Delivery section with control panel, more human-friendly.
★Optoelectronic sensor ensure better delivery.
★Automatic delivery board control system.
★Manual delivery device
★Main chain protection device
★Rolling back preventing device

Product Parameters

Max paper size:	1080x780mm
Min paper size:	400x330mm
Max cutting size:	1075x770mm
Die frame inner size:	1100x790mm
Cutting plate size:	1080x780mm
Min gripper edge size:	7mm
Cutting precision:	≤±0.1mm
Max cutting pressure:	300T
Max cutting speed:	7000S/H
Pre-stacking height:	1550mm
Delivery stack height:	1400mm
Application:	Cardboard:0.1~2mm
	Corrugated paper:<4mm
Main motor power:	11KW
Total power:	45KW
Dimension :	4880(+1650)x2100(+1650)x2350mm
AEM-1080J weight:	15T

Company Profile
Ruian Gaoke Machinery Co., Ltd, was established in 2006. As a professional manufacturer, we not only do manufacturing, but also researching, marketing and offering after sales service. We supply quality equipments, effective and convenient solutions for cardboard box and corrugated box folding industry, printing and packaging industry.
We persist on business philosophy of technology and Innovation, casting quality and pursuit of excellence.
FAQ 1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers? A:Yes.(Please provide us your requested seaport and we can check the shipping charge
and arrange shipping for your order) 6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed
to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem as
soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders
from China and foreign countries, so we need custom one for you, and your order will
be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to
ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via
West Union and L/C.

---
