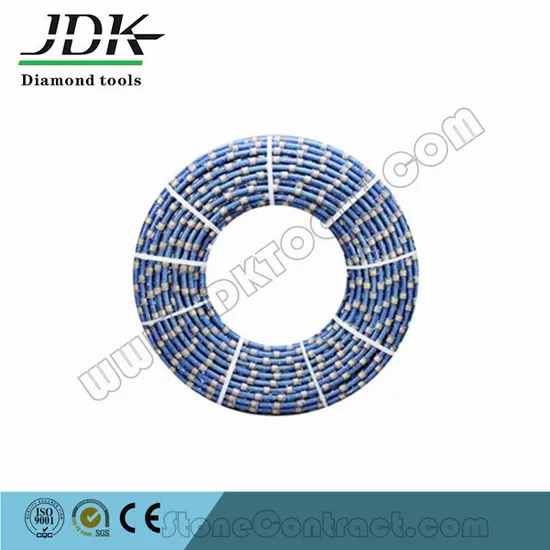

Rubber Coated Diamond Wire Saw for Stone Quarry Reinforce Concrete Cutting

Product Description

For Granite Profiling 9.0mm Diamond Beads Plastic Injection Diamond Wire Saw

Diameter	Application	Fixing methods	Beads/meter
11.5mm	Reinforced concrete cutting	Rubber injection	40
11.5mm	Granite quarrying	Rubber injection	40
11mm or 10.5mm	Marble quarrying	Rubber injection	40
11mm or 10.5mm	Marble quarrying	Spring holding up	28
10.5mm	Granite block squaring	Plastic injection	37
10.5mm	Marble block squaring	Plastic injection	33
7 to 9mm	Granite profiling	Plastic injection	37
7 to 8.5mm	Marble profiling	Plastic injection	33

Technology Parameter(quarrying)

Cutting material	Linear speed(m/s)	Cutting speed(m 2 /h )	Wire life(m 2 /m )
Hard granite	20-24	1-2	5-9
Mid-hard granite	22-26	2-4	6-12
Soft granite	24-28	4-8	8-18
Hard marble	28-23	4-8	20-30
Mid-hard marble	30-35	6-10	25-35
Soft marble	33-38	8-12	30-45

Other specification are available upon request.
Attention:
If you only order diamond segments from us, to get the best performance, we would suggest you use high frequency Silver Welded machine to make the brazing.
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufactory with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery day:
For samples, we can ship them within 3 days after receiving the deposit, for regular order, we need 3-7 days, depends on the quantity of your order.
Packaging:
Inner package is carton box, outside package are choose according to the transport way. By air used carton packing to reduce the weight and by sea, use wooden cases for waterproof.
Shipment:
For Less than 45kgs, we would suggest ship them by couriers by DHL, FedEx, UPS, EMS and so on. For 45-200kgs, if you need the cargo urgent, we would suggest ship them by air. And for very heavy and bulky cargo, by sea is our best choice.

---
