High Speed PLC Annealing Automatic Low Noise Intermediate Dual Wire Drawing Machine Machineries Manufacturer Supplier Plant for Steel Brass Copper Aluminum Wire

Product Description

High Speed PLC Annealing Automatic Low Noise Intermediate Dual Wire Drawing Machine Machineries Manufacturer Supplier Plant for Steel Brass Copper Aluminum Wire

Model	LZ-560
Dia. Of pot	560 mm
Number of blocks	10
Wire diameter	Inlet Max. 5.5mm and outlet Min. 1.6mm
Compression (%)	Max. 91.54
Average compression(%)	21.88
Input wire tensile strength	≤600mpa
Max. wire feeding speed	16.66m/ s (1000 m/ min)
Motor	22KW
Mould size	40mm* 25
Pot arrangement	Upright
Wire feeding	From left to right

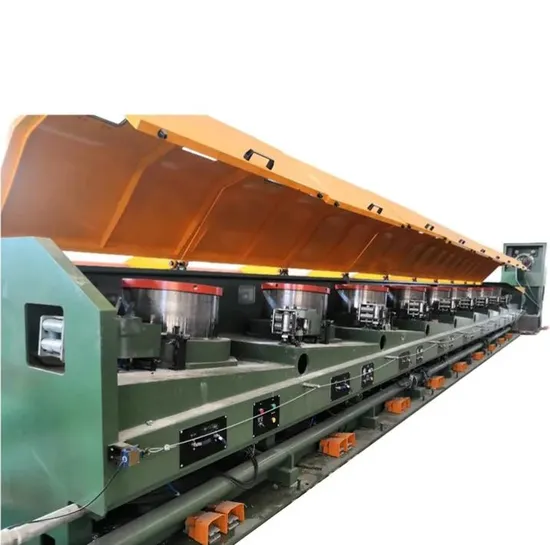

Wire drawing machine
The wire drawing machine, manufactures wire drawing. Part of the steel wire rod as raw material and reduces its diameter as much as you want.
It is the initial machine, indispensable to process steel wire and metallic mesh in its different applications.
With this machine you will not have to worry about buying and keeping in stock a lot of different diameters of black wire or galvanized wire.
By having this machine, you will only have to buy the wire rod in its primary state and you will be able to reduce its diameter for all kinds of uses.
Whether you market wire in different diameters or manufacture various types of mesh, our wire drawing machine is indispensable to work with all possibilities of diameters.
Q: If our input wire diameter is 5.5mm, output 1.6mm, should we choose pulley type wire drawing machine or straight-line wire drawing machine?
A: Input 5.5mm output 1.6mm it's better use straight-line wire drawing machine; Pulley type wire drawing machine suitable for final output Min, 2mm wire.

Q: What is the use of annealing furnace?
A: Improve and eliminate various structural defects and residual stresses caused by the wire in the drawing pass, and avoid deformation and fracture in future use; the annealed wire has better elasticity and flexibility.

Q: How to cooling the drum while working?
A: Our drum equip water cooling system;

Q: Can we use high carbon steel wire?
A: We can special design for you.

Q: What kind of container for delivery?
A: it's better use 1*40ft+ 1*20ft.

---
