Stock 4axis Vertical CNC Machining Milling Machine 800mm 8000 Rpm

Product Description

Specification List for:

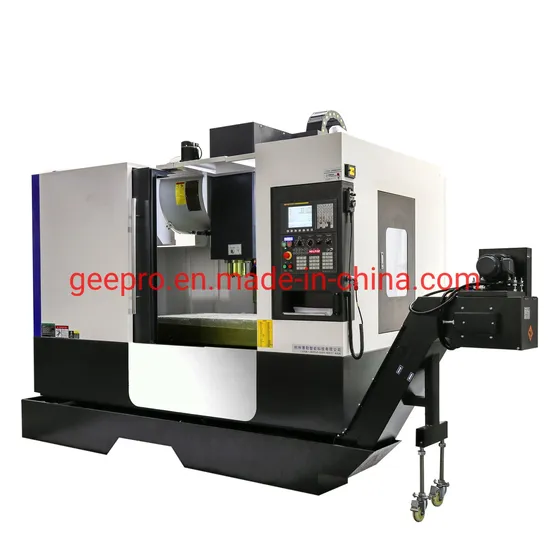

Vertical machine center
3/4/5 Axis Gantry/Vertical/Horizontal Machining Center CNC Milling Machine
Also Focus on Laser Sheet Metal&Pipe Cutting Machine For Sale

Travel	UNIT	CV640	CV750	CV850	CV1020	CV1165	CV1265	CV1480	DV-650+	DV-850+
X-axis travel	mm	600	750	850	1020	1120	1250	1420	600	800
Y-axis travel	mm	420	420	520	520	650	650	800	500	500
Z-axis travel	mm	450	450	550	550	630	630	700	550	550
Worktable area	mm	700*420	800*420	1000*520	1100*520	1200*630	1350*630	1550*800	760*500	910*500
X/Y/Z-axis rapid feed		48/48/48	48/48/48	36/36/36	36/36/36	36/36/36	30/30/30	24/24/24	48/48/48	48/48/48
Spindle speed(option)	r.p.m	12000	12000	10000	10000	8000	8000	6000	10000	10000
Spindle transmission type(option)		direct type	direct type	direct type	direct type	belt type	belt type	belt type	direct type	direct type
Spindle tapper		BT40	BT40	BT40	BT40	BT40	BT40	BT50	BT40	BT40
Positioning precision	mm	±0.005	±0.005	±0.005	±0.005	±0.005	±0.005	±0.01	±0.005	±0.005
Repeat positioning precision	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.005	±0.003	±0.003
Tool number(option)	Tool	20	20	24	24	24	24	24	24	24
Controller(option)		0I-MF	0I-MF	0I-MF	0I-MF	0I-MF	0I-MF	0I-MF	0I-MF	0I-MF

CV Series main characteristics: Rapid feed rate (X / Y / Z axis): 48/48/48m/min
Three-axis travel(X/Y/Z-axis): CV-640:600/420/450mm CV-750:750/420/450mm 1.Three axis line rail: X / Y-axis ball rail line, Z-axis roller rail line, less friction, shortening the movement time, improving the efficiency; meanwhile, high precision processing can be completed by the excellent repeating positioning accuracy. 2.Z-axis drive without counterweight: Z-axis with brake type servo motors, non-counterweight design, for batch processing of high-speed drilling and tapping parts. 3.Three-axis direct-type drive design: Three-axis motor and screw with direct-type drive design, no noise from the belt or gear without backlash and vibration problems, three-axes rapid movement up to 48m / min, greatly saving the non-processing time. Application:
Suitable for: telecommunications,medical equipment,automobile parts,molds,3C products processing

---
