DC12V Wireless RF Remote Control Transmitter and Receiver

Product Description

Product Description

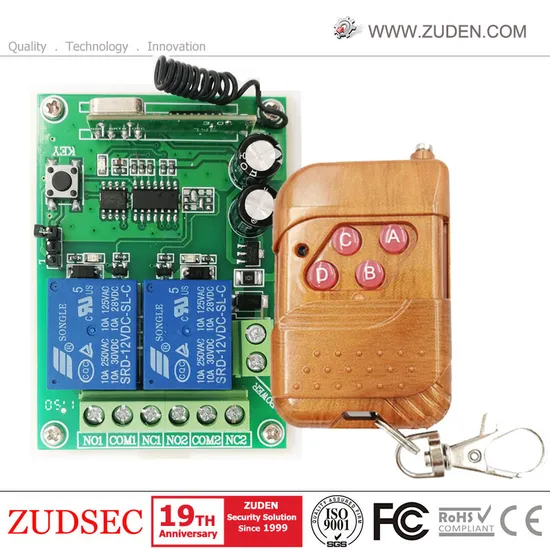

DC12V Wireless RF Remote Control Transmitter and Receiver
Wireless RF Remote Control Switch / Relay Receiver / Contoller Kit/ Gate Opener: 1 /2 /4-channel output optional, DC12/24V or AC220/110V optional, It's an idea wireless solutions for automatic control application like: Wireless reomte control, electric door/gate, light control, Control curtain, window and lifter equipment, industrial control, security system and home appliances, various wireless appliance switch to switch on/off of equipment controlling or implement the motor F/R (forward or reverse) rotation etc. Can work with any of ZUDEN remote controller
* 12V or 220V optinal.

Features - High security, larger storage, stable performance, low power consumption and easy operation.
- Learning code between remote control and wireless relay receiver
- Can learn up to 80 different remote controls each wireless relay receiver.
- With ZUDEN Remote offers flexible installation options.
- The relays can be Normally Open (N.O.) or Normally Closed (N.C.).
- Three working modes: Inching, Self-Lock and Interlock.
- Suitable: electric door, window and gate, industrial control, home appliances and security system and so so.
Product Parameters

Specifications

Working modes: Inching, Self-Lock and Interlock. Operating voltage :DC12V or 24V , AC220V or 110V(customized) Quiescent current :≤5mA; Loading current :≤3A Wireless Frequency: 315MHz,433MHz Transmit distance:50-100M Coding type: learning code Operating temperature :-20ºC ~ +50ºC Receiving sensitivity :≥-105dBm Output voltage :AC or DC Relay Receiver: Product size: 75mm×55mm×30mm; Weight: 75g/pc; Remote controller: Product size: 59mm×30mm×15mm; Weight: 40g/pc;
