IEC60529 Climate Test Machine Ipx1~ Ipx6 Water Rain Spray Test Chamber

Product Description

IEC60529 Climate Test Machine Ipx1~ Ipx6 Water Rain Spray Test Chamber
Decription
IEC60529 IPX1~ IPX6 grade water rain spray test chamber is based on protection grade ,simulates the outerdoor raining climate to the water proof performace test ,determine the products reach the corresponding protection grade or not ,so that product desgin,research and decelopment and factory inspection.It is mainly for electrical and electronic products,LED lighting products,Lamps and lanerns ,electrical cabinet,communication,digital equipment and vehicles.
Features:
1. Comply with requirement of IEC60529 standard IPX1 to IPX6 water sproof test.
2. Chamber type structure: chamber body is consisted of test area and mechanical room, IPX5&IPX6 water flush
channel is installed at the back of the chamber body.
3. SUS 304 S.S plate material for inner chamber , cold rolled sheet with white coated color for external chamber,
other parts touched to water is made of stainless steel materials or anti corrosion materials.
4. Water cycle system: burn-in water tank. Use pressure relief valve to drain the extra water.
5. Tempered glass observation window
6 Best after sales service: One year free parts maintenance, extending warranty is available.
7 Customization is available & welcomed.
8Sample power on test
9IPX1-IPX6 test can be performed in one chamber
10Water can be recycled

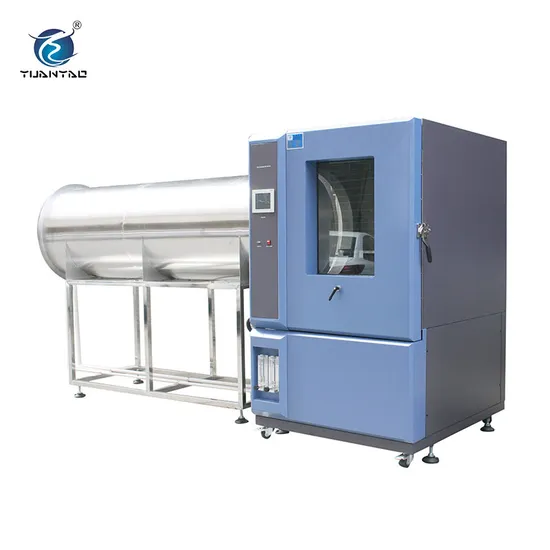

Products photos:
Specification:

Model	YSRT-512	YSRT-1000	YSRT-1728
Test zone size W*H*D(cm)	80*80*80	100*100*100	120*120*120
External chamber size WxHxD ( cm)	125*180*340	145*200*360	165*220*380
Rain drop area(IPX5-IPX6)	60*60 cm	60*60cm,80*80cm	80 *80cm,100*100cm
Swing pipe radius(IPX3-IPX6)	30cm	40cm	50cm
Rotary table siamtere&load	50cm,50KG	60cm,50KG	80CM,50KG
Spray nozzie dimeter&jet distance(IPX5- IPX6)	6.3mm(IPX5),1 2. 5mm(IPX6);2.5~3m
Water flow(IPX5-IPX6)	1~1.5mm/min(IPX1),3 ~3.5mm/min(IPX2);1.1L/min(IPX3),1.8L/min(IPX4);12.5L±0.625Lmin(IPX5),100±5L/min(IPX6)
Rotating speed of rotary table	1-5r/min ,Adjustable
Innernal chamber material	SUS#304 stailess steel plate
External chamber material	Clode rolled sheet +Power coating
other components	Indoor light ,wiper,caster adjuster
Power supply	AC3 phase 380V 60/50HZ
Customization	Non-standrad requipments is available

In addition to IEC60529 IPX1 ~ IPX6 grade water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock
Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray
Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
Company profile
FQA
1.Do you offer after-sales service?
Every machine from our factory has a 12-month warranty after shipment. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if necessary.
2.Do you accept customization service?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.Why choose Gangdong yuanyao ?
We are the factory with own team .we can provide you the reliable quality products while with reasonable price.
5.How about your packing and shipment
products wold be coverd with pe film then put them into the standard wooden case,By Sea or Air are available
Welcome to enquire and purchase!

---
