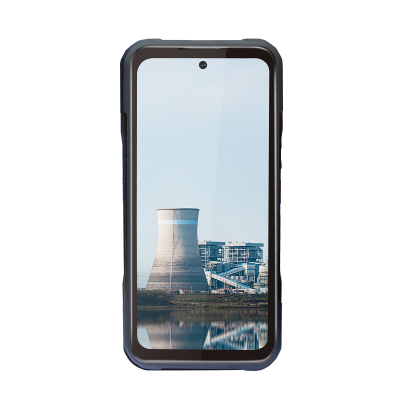

| Product model | KTW399(5G) | ||
| Explosion proof mark | Ex ib I Mb Ex ib IIC T4 Gb； Ex ib IIIC T130℃ Db； | ||
| Network standard | GSM/WCDMA/CDMA/FDD/TDD/SA/NSA | ||
| Network frequency band | NR: N1/3/5/7/8/20/28/38/40/41/77 78/79 FDD: B1/2/3/4/5/7/8/12/13/17/18/ 19/20/25/26/28A/28B/66 TDD: B34/38/39/40/41 WCDMA: B1/2/4/5/6/8/19 CDMA: BC0/BC1/BC10 GSM: B2/3/5/8 | ||
| CPU model | MT6833 Dimensity 700 | ||
| CPU core | 2x ARM Cortex-A76 2.2GHz 256KB L2、6x ARM Cortex-A55 2.0GHz 128KB L2、1MB L3 | ||
| Processor technology | 7nm | ||
| GPU model | Arm Mali-G57 MC2 | ||
| Operating system | Android 13 | ||
| Main screen | Screen type | AMOLED | |
| Screen size | 6.43 inches | ||
| resolving power | 2400 × 1080 pixels | ||
| screen color | 16.7 million colors | ||
| Pixel density | 409PPI | ||
| Screen aspect ratio | 20:9 | ||
| Screen to body ratio | 84.89% | ||
| brightness | 500cd/m2 | ||
| contrast ratio | 80000:1 | ||
| Touch | Multi touch | ||
| IC | GT9885 | ||
| Secondary screen | Screen type | AMOLED | |
| Screen size | 1.58 inches | ||
| resolving power | 460*228 | ||
| screen color | 16.7 million colors | ||
| Pixel density | 325PPI | ||
| Screen aspect ratio | 2:1 | ||
| Screen material | Panda Glass | ||
| IC | FT3168 | ||
| contrast ratio | 10000:1 | ||
| Front camera | sensor chip | OmniVision OV20880 | |
| Sensing area | 1/3.1inch 5P | ||
| Pixel size | 5184*3888 20M | ||
| aperture | F/2.0±5% | ||
| Field of view angle | 75.5°(Diag) | ||
| focus mode | FF | ||
| Shooting function | Video, Picture, Potrait, GIF, Beauty, Anti flicker, Filter, Film mode, Mirror | ||
| Rear Camera | main camera | sensor chip | OmniVision OV50C |
| Sensing area | 1/2.5 inch 5P | ||
| Pixel size | 8192*6144 50M | ||
| aperture | F/1.8±5% | ||
| Field of view angle | 78.83°(Diag) | ||
| focus mode | AF | ||
| flash lamp | support | ||
| Shooting function | HDR, AI camera, Night Mode, Video, Picture, Pro Mode (adjustable parameters), Portrait, GIF, Panorama, Intelligent Scanning, Beauty, Anti flicker, Slow motion, Film mode, Time Lapse, Filter | ||
| Wide angle+macro camera | sensor chip | Samsung S5K4H8YX | |
| Sensing area | 1/4inch 5P | ||
| Pixel size | 8M 3264*2448 | ||
| aperture | F/2.2±5% | ||
| Field of view angle | 118.8°(Diag) | ||
| focus mode | AF | ||
| Shooting function | Picture, Brand watermark, Filter, Anti flicker, Macro, Wide Angle | ||
| Night vision camera | sensor chip | OmniVision OV24A1B-rev-1B | |
| Sensing area | 1/2.83inch 6P | ||
| Pixel size | 24M 5664*4248 | ||
| aperture | F/1.8±5% | ||
| Field of view angle | 78°(Diag) | ||
| focus mode | AF | ||
| Shooting function | Video, Picture, Anti flicker, Filter | ||
| Image format | JPEG、BMP、GIF、PNG etc | ||
| Video format | MP3、M4A、AAC、MKA、AMRALAC(Apple Lossless)、FLAC、APE、WAV | ||
| Size | 171mm×81.70 mm×14.60mm | ||
| weight | Approximately 296g (including battery) | ||
| SIM card | Nano SIM+Nano SIM Or Nano SIM+TF card | ||
| Bluetooth | BT 5.1 | ||
| Data/charging interface | USB Type-c | ||
| Headphone jack | Type-C to 3.5mm headphone jack | ||
| Horn | 1217BOX AAC | ||
| Motor | 1027 Flat Motor | ||
| Receiver | 0809 waterproof earpiece | ||
| Microphone | AAC Silicon microphone | ||
| WLAN | WLAN protocol | 802.11 a/b/g/n | |
| WLAN frequency | Supports 2.4G and 5.0G | ||
| WLAN hotspot | support | ||
| NFC | support | ||
| OTG | support | ||
| Fingerprint identification | Support (side fingerprint) | ||
| Facial recognition | support | ||
| Location | Beidou、Galileo、Glonass、GPS | ||
| Side keys | Power button | ||
| Volume+/- key | |||
| Customize buttons | |||
| Gravity sensor | support | ||
| Distance sensor | support | ||
| Environmental light sensor | support | ||
| Compass | support | ||
| Ground pool | support | ||
| Gyroscope | support | ||
| Barometer | support | ||
| Gyroscope | support | ||
| Compass | support | ||
| Memory | 8GB+256GB 12GB+256GB 20GB+256GB | ||
| Expand storage | TF memory card, with a maximum expansion support of 2TB | ||
| Battery | 6000mAh intrinsic safety lithium battery (built-in) | ||
| Working temperature | -20℃～+50℃ | ||
| Relative humidity | ≤98%（25℃） | ||
| Atmospheric pressure | 80 kPa～106kPa | ||
| Storage temperature | -40℃～+60℃ | ||
| Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments | ||
| Protection level | IP68（1.2m，30min） | ||
