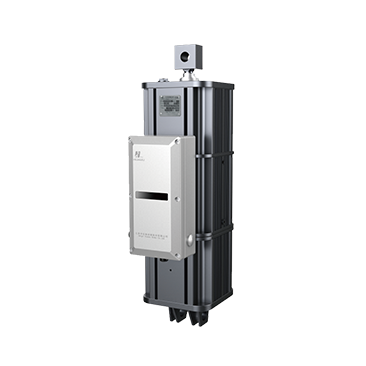

Electro-hydraulic thruster
The HED series electro-hydraulic thruster is a drive control device that integrates a power unit and a driving device. It outputs thrust and is a compact thruster based on high-quality hydraulic components in a highly reliable control box. Widely used as a driving device for industrial disc and drum brakes, it can also be used for driving and controlling various industrial valves, gates, and clamping devices.
MAIN FEATURE:
01 has high startup thrust and low operating noise. All components are installed internally with redundant design;
02 Fast response time, automatic pressure compensation, adjustable return speed. Integrated control box, fault indication and LED actuation data display;
03 adopts an integrated design of electrical control module and hydraulic control module, with compact size and light weight;
04 has a high protection level, with an overall protection level of IP66 and a C4 level anti-corrosion design, providing excellent anti-corrosion performance;
05 adopts intermittent operation mode with low leakage hydraulic components. When the pressure reaches the set value, the motor stops running and enters the pressure holding mode
BASIC PARAMETER:
HED series thrusters:
Product model: HED1250-60（80、120）、HED2000-60（80、120）、HED3000-60（80、120）、HED4500-80（120）、HED8000-80（120）
Maximum thrust (N): 1700, 2700, 5000, 6000, 12000
Travel (mm): 60, 80, 120
>>
