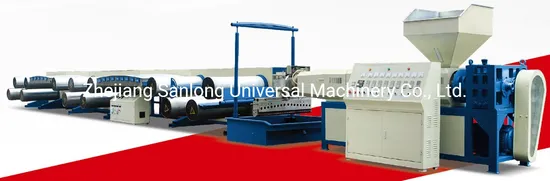

Plastic Tape Extruder (PP WOVEN FABRIC) (SJ-L Series)

Product Description

PLASTIC TAPE EXTRUDER
PERFORMANCE AND CHARACTERISTICS
SJ-L Series Plastic Tape Extruder is designed according to our research on the basis of actual application in China plastic woven sacks industry. It is the most popular model in China market featured in being economical, practical, and reliable. It mainly adapts to the raw material of thermo-plasticity such as polythene (PE) and polypropylene (PP) and so on. It can also make full use of recycled material outputting low intensity of plastic tape, which brings enormous economic profit by reducing production cost.
MAIN TECHNICAL DETAILS

Item Type	Diameter of Screw (mm )	Screw L/D Ratio	Screw Rotational Speed (r/min)	Die Length (mm )	Drawing Line Speed (m/min )	Stretched Ratio	Prime Motor Power (kw )	Drawing Motor Power ( kw )	Heating Power (kw )	Thickness of Plastic Tape (mm )	Capacity (kg/h)	Installation Dimension (m )	Weight (kg)
SJ-L115-8	115	22/27	20-80	800	50-150	4-7	18.5	5.5	48	0.025-0.08	40-80	14.1×1.55×1.2	5800
SJ-L120-10	120	23/29	20-80	1000	50-150	4-7	22/37	5.5	50/54	0.025--0.08	70-100	18.1×1.75×1.3	7500
SJ-L120-12	120	24/30	20-80	1200	50-150	4-7	22/37	7.5	52/56	0.025--0.08	80-110	18.1×2×1.3	8500
SJ-L132-15	132	24/30	20-80	1500	50-150	4-7	30/37	7.5	57/61	0.025--0.08	105-135	19.5×2.4×1.3	10500
SJ-L135-16	135	26/30	20-70	1600	50-150	4-7	30/45	7.5	61/65	0.025--0.08	130-160	19.6×2.6×1.3	11200
SJ-L140-18	140	27/30	20-70	1800	50-150	4-7	37/45	11	71/75	0.025--0.08	150-180	19.9×2.95×1.3	12800
SJ-L145-20	145	27/30	20-70	2000	50-150	4-7	45/55	11	75/81	0.025--0.08	170-200	20.1×3.25×1.3	14000
SJ-L150-22	150	27/30	20-70	220	50-150	4-7	45/55	11	86/90	0.025-0.08	190-225	20.4×3.85×1.35	15300
SJ-L155-24	155	27/31	20-65	2400	50-150	4-7	55/75	11	90/94	0.025-0.08	205-235	20.8×4.2×1.35	16800
SJ-L155-26	155	27/32	20-65	2600	50-150	4-7	55/75	15	98/103	0.025-0.08	220-250	21×4.55×1.35	18600
SJ-L160-28	160	27/32	20-65	2800	50-150	4-7	55/75	15	106/112	0.025-0.08	240-270	22×4.75×1.4	21000
SJ-L165-30	165	27/32	20-65	3000	50-150	4-7	75/90	15	114/120	0.025-0.08	260-300	22.5×5.05×1.4	23500
SJ-L170-32	170	28/32	20-65	3200	50-150	4-7	75/90	18.5	122/128	0.025-0.08	290-350	22.8×5.05×1.7	26000

---
