Industry Laser Cutting Coils Machine for Aluminum Steel

Product Description

Product Description

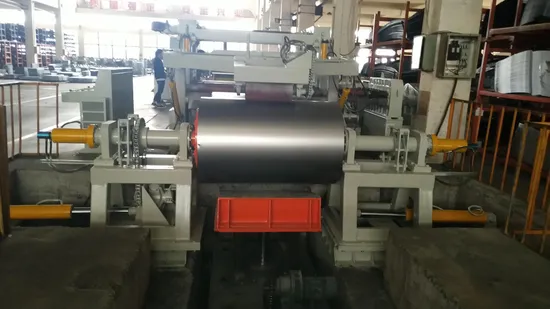

Our laser blanking line using a laser cutting machine to fly cut (follow cutting) during the movement of the strip. The purpose is to solve the problem of rapid cutting of continuous metal and non-metallic strips without molds, in order to reduce the investment and mold consumption costs of the equipment, and effectively improve the utilization rate of materials.
Low equipment investment: has lower quality, lower energy consumption, and does not require complex equipment foundations, greatly reducing the initial investment and later maintenance costs.
High output efficiency:uses coils for blank production, replacing the production process of slicing coils first and then cutting them on the equipment, improving production efficiency.
High flexibility: No need to manufacture molds, advanced layout software and control system are used, and product specifications and shapes can be quickly converted, making it suitable for various batch production.
Low maintenance cost: using fiber laser cutters for reliable performance; At the same time, laser cutting speed is fast, and the cutting speed of stainless steel can reach 40 meters per minute (when the thickness is 1mm), which can quickly complete cutting and cutting.
High product quality: Adopting high-precision leveling machines, high-precision feeding and cutting systems, advanced automatic stacking systems, etc., it can adapt to the production of various metal material parts and blanks.
Low cost of use: no need for molds for stamping, the cost of mold manufacturing and maintenance is reduced; At the same time, the equipment does not use a large press, greatly reducing production energy consumption and reducing environmental noise.
High material utilization rate: because continuous production is carried out using coil materials, there will be no loss of material head and tail during single chip production; At the same time, the equipment adopts optimized layout, combining various shapes of parts for edge free cutting, reducing material loss and improving material utilization rate.
Product Parameters

Parameter	Scrape			Unit
Coil width	200-700	600-1250	800-2000	mm
Coil thickness	0.4-1.8	0.4-1.8	0.4-1.8	mm
Coil weight	5000	10000	20000	kg
Circle diameter	60-500	85-660	85-660	mm
Strokes	20-90	20-60	20-60	spm
Rated tonnage	2000	2500	2500	KN

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.

---
